SPECIFICATION

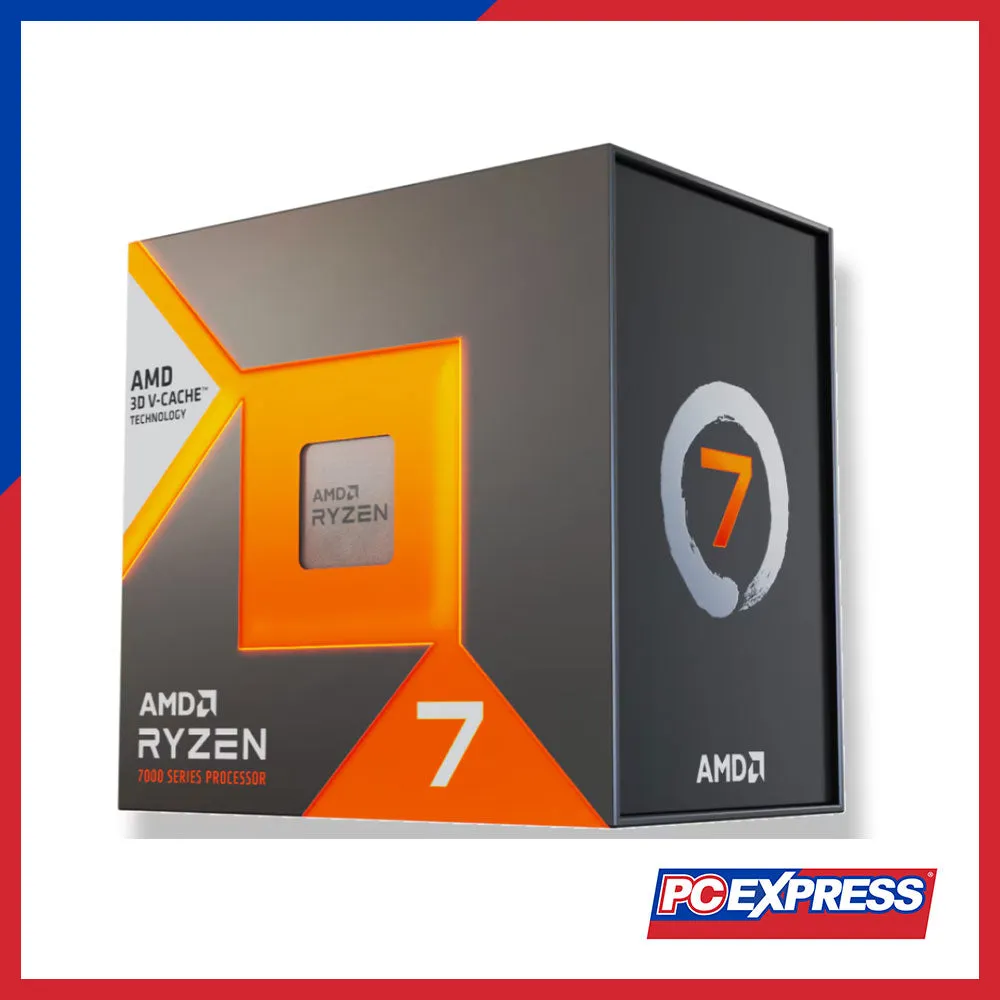

Name | AMD Ryzen™ 7 7800X3D |
Family | Ryzen |
Series | Ryzen 7000 Series |
Form Factor | Desktops, Boxed Processor |
Market Segment | Enthusiast Desktop |
AMD PRO Technologies | No |
Consumer Use | Yes |
Regional Availability | Global |
Former Codename | Raphael AM5 |
Architecture | Zen 4 |
# of CPU Cores | 8 |
Multithreading (SMT) | Yes |
# of Threads | 16 |
Max. Boost Clock | Up to 5 GHz |
Base Clock | 4.2 GHz |
L1 Cache | 512 KB |
L2 Cache | 8 MB |
L3 Cache | 96 MB |
Default TDP | 120W |
Processor Technology for CPU Cores | TSMC 5nm FinFET |
Processor Technology for I/O Die | TSMC 6nm FinFET |
CPU Compute Die (CCD) Size | 71mm² |
I/O Die (IOD) Size | 122mm² |
Package Die Count | 2 |
AMD EXPO™ Memory Overclocking | Yes |
Precision Boost Overdrive | Yes |
Curve Optimizer Voltage Offsets | Yes |
AMD Ryzen™ Master Support | Yes |
CPU Socket | AM5 |
Supporting Chipsets | A620, X670E, X670, B650E, B650 |
CPU Boost Technology | Precision Boost 2 |
Instruction Set | x86-64 |
Supported Extensions | AES, AMD-V, AVX, AVX2, AVX512, FMA3, MMX-plus, SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3, x86-64 |
Thermal Solution (PIB) | Not Included |
Recommended Cooler | Liquid cooler recommended for optimal performance |
Max. Operating Temperature (Tjmax) | 89°C |
Launch Date | 04/06/2023 |
OS Support | Windows 11 - 64-Bit Edition, Windows 10 - 64-Bit Edition, RHEL x86 64-Bit, Ubuntu x86 64-Bit |
Connectivity | USB 3.2 Gen 2 (10Gbps) Ports: 4, USB 3.2 Gen 1 (5Gbps) Ports: 0, USB 2.0 (480Mbps) Ports: 1, SATA Ports: 0 |
PCI Express® Version | PCIe® 5.0 |
Native PCIe® Lanes (Total/Usable) | 28 / 24 |
Additional Usable PCIe Lanes | X670E/X670: 12x Gen4, B650E/B650: 8x Gen4 |
NVMe Support | Boot, RAID0, RAID1, RAID10 |
System Memory Type | DDR5 |
Memory Channels | 2 |
Max. Memory | 128 GB |
System Memory Subtype | UDIMM |
Max Memory Speed | 2x1R DDR5-5200, 2x2R DDR5-5200, 4x1R DDR5-3600, 4x2R DDR5-3600 |
ECC Support | Yes (Requires motherboard support) |
Graphics Capabilities | Graphics Model: AMD Radeon™ Graphics, Core Count: 2, Frequency: 2200 MHz, USB Type-C® DisplayPort™ Alternate Mode: Yes |
Product IDs | Boxed: 100-100000910WOF, Tray: 100-000000910 |
