Name: Antec Nx250 Vp550 Plus Bundle
SKU: 687762

Product Details ＋

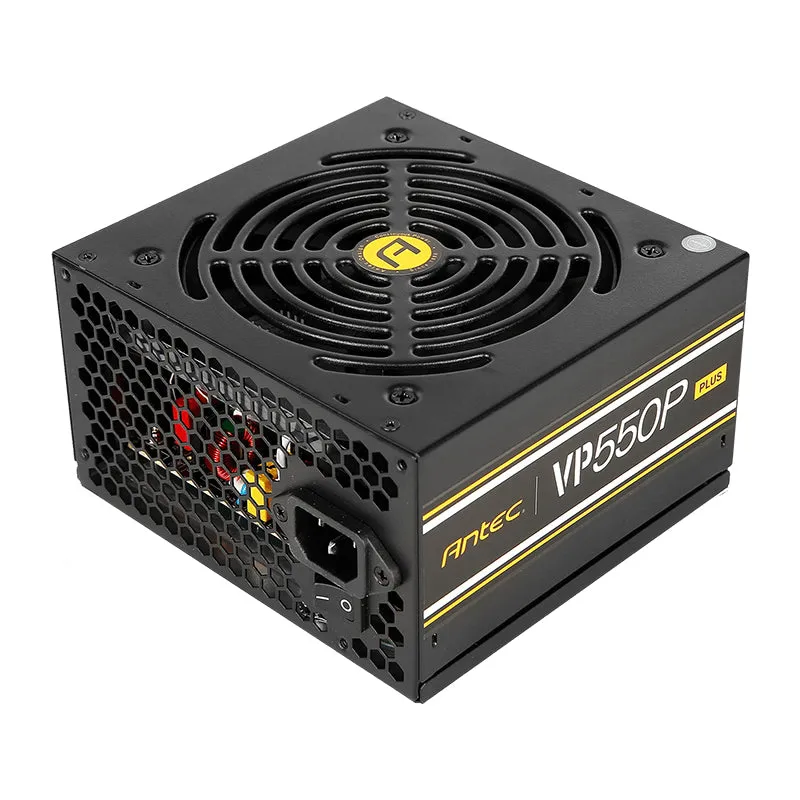

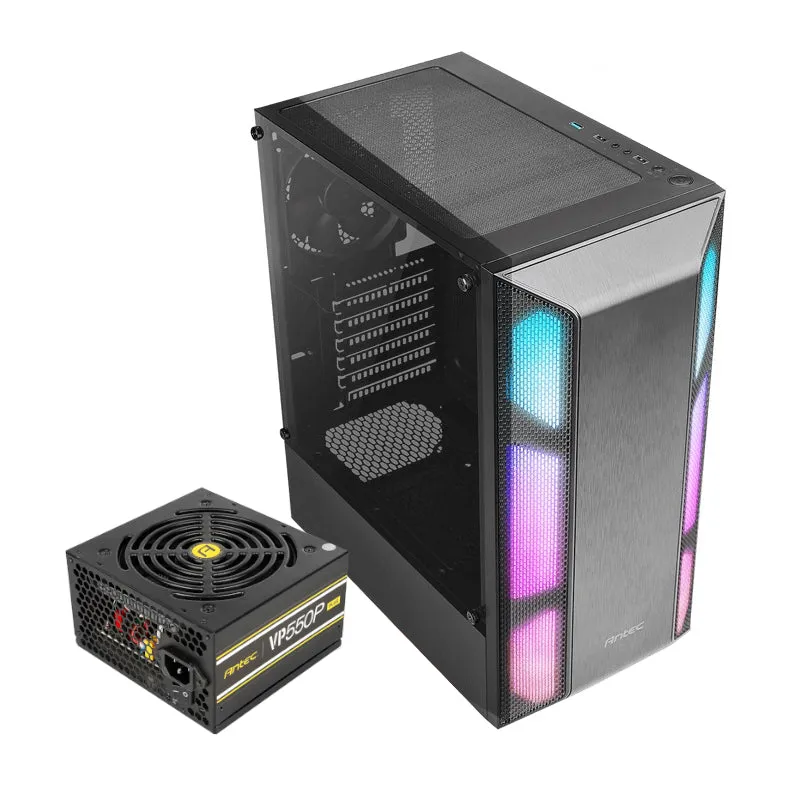

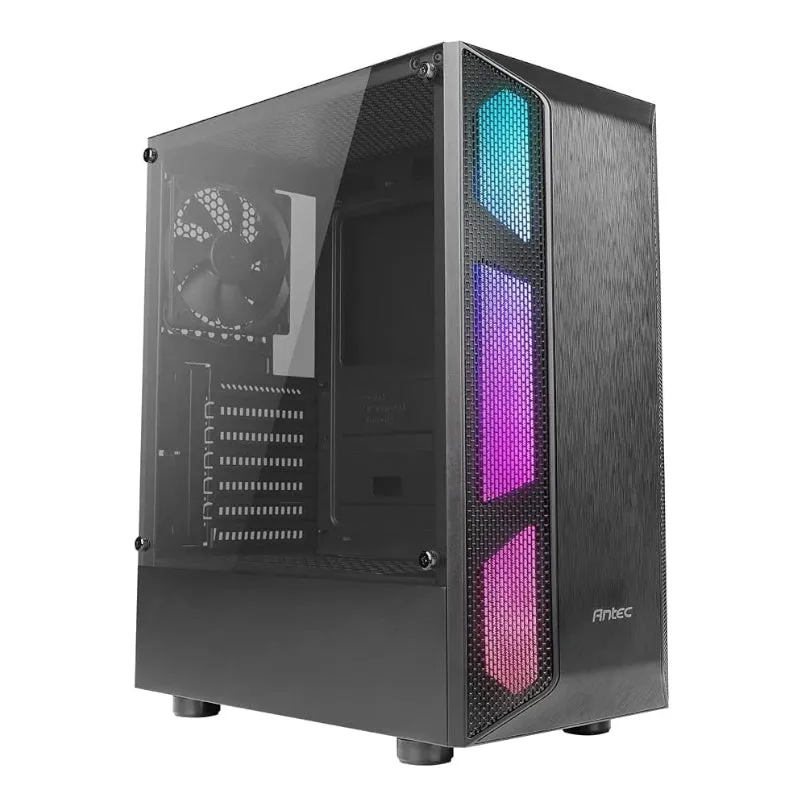

The Antec NX250 VP550 Plus bundle pairs the easy to build and easy to cool Antec NX250 ATX Mid-Tower Gaming Chassis with the discreet and durable Antec VP 550W Plus Non-Modular PSU. This power supply operates with an 80 Plus performance standard, providing quality power to your computer. The NX250 gaming chassis is built with great clearance to ensure gaming performance and optimized cooling.

FEATURES:

ATX | Micro-ATX | ITX support
Tempered Glass Side Panel
Mesh front air vents and top panel
USB3.0 and LED Control on I/O panel
310mm GPU support
160mm CPU cooler Support

Continuous Power – Guaranteed Continuous Power from Antec
80 PLUS® 230V Standard Certified – Up to 85% efficient, to reduce your electricity bill
120mm Silent Fan
Thermal Manager – An advanced low voltage fan control for optimal heat & noise management
CircuitShield™ – Full suite of industrial grade protections: OVP/SCP/OPP/NLO
Multi PCI-E – 2 PCI-E connectors for multiple GPU support

SPECIFICATIONS:

- Materials: SPCC | Plastic
- Dimensions: 38.6 x 21.5 x 44.8 cm
- Form Factor: Mid-Tower
- Motherboard Support: ATX, Micro-ATX, ITX
- I/O Ports: USB3.0 x 1, USB2.0 x 2, MIC/HD Audio, Power, LED Control Button
- Side Panel: Tempered Glass Side Panel
- Expansion & Drive Bays
  - Expansion Slots x7
  - 3.5″/2.5″ x2/1
  - 2.5″ x2
- Fan Support:
  - Front 3 x 120mm/2 x 140mm
  - Top 2 x 120mm
  - Rear 1 x 120mm
  - PSU Shroud 2 120mm
  - Included Fans 1 x 120mm in rear
- Radiator Support
  - Front 120 / 140 / 240 / 280 / 360mm
  - Rear 120mm
- Clearance
  - Max GPU Length ≤ 310mm
  - Max CPU Cooler Height ≤ 160mm
  - Max PSU Length ≤ 185mm(with HDD), ≤ 310mm(without HDD)
- Dust Filters: Front/Top/Bottom
- Weight: 4200 g
- Modularity: Non-Modular
- Output Capacity: 550W
- Input Voltage: 200-240 VAC ±10%
- Input Current: 5A
- Input Frequency Range: 50Hz-60Hz
- PFC: Active PFC (>0.9 typical)
- Power Good Signal: 100-500ms
- Efficiency: 85% Typically
- Protection: OVP/SCP/OPP/NLO
- Regulatory: TUV/CB/CE/KC
- Fan: 120mm Silent Fan
- Certifications: 80 Plus
- Dimensions: 14 x 15 x 8.6 cm
- Connectors:
  - 1 x MB 24(20 4) Pin
  - 1x 8(4 4) Pin EPS 12V
  - 2x 8(6 2) Pin PCI-E
  - 7x SATA
  - 2x Molex
  - 1x FDD
