Features

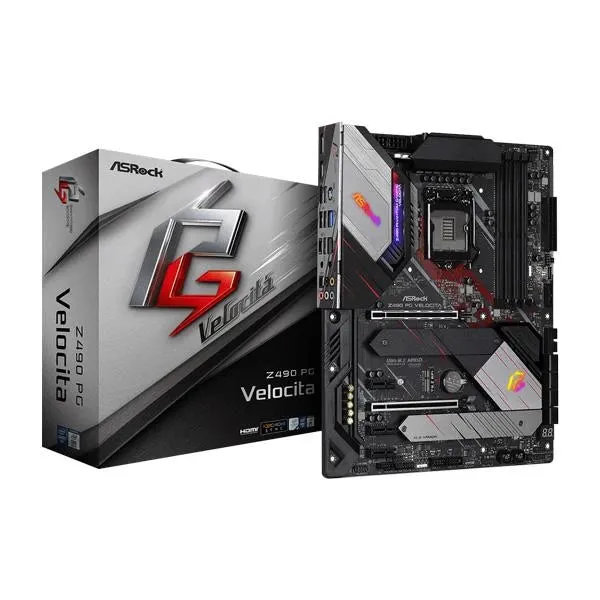

Z490 PG Velocita

• Supports 10th Gen Intel® Core™ Processors and 11th Gen Intel® Core™ Processors (LGA1200)*
• 13 Phase Dr.MOS Power Design
• Supports DDR4 4666MHz (OC)
• 2 PCIe 3.0 x16, 3 PCIe 3.0 x1, 1 M.2 (Key E) for WiFi
• AMD Quad CrossFireX™ and CrossFireX™
• Graphics Output Options: HDMI, DisplayPort
• 7.1 CH HD Audio (Realtek ALC1220 Audio Codec), Nahimic Audio
• 8 SATA3, 2 Ultra M.2 (PCIe Gen3 x4 & SATA3)
• 2 USB 3.2 Gen2 (Rear Type A C), 9 USB 3.2 Gen1 (4 Front, 4 Rear, Front Type-C)
• Phantom Gaming 2.5 Gigabit LAN, Intel® Gigabit LAN
• ASRock Polychrome SYNC
• *Updated BIOS is required for compatibility.
• Memory

•  Dual Channel DDR4 Memory Technology
  - 4 x DDR4 DIMM Slots
  - Supports DDR4 4666 (OC)* / 4600 / 4500 / 4400 / 4333/4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3200(OC) / 2933 / 2800 / 2666 / 2400 / 2133 non-ECC, un-buffered memory
  - Supports ECC UDIMM memory modules (operate in non-ECC mode)
  - Max. capacity of system memory: 128GB***
  - Supports Intel^® Extreme Memory Profile (XMP) 2.0
  - 15μ Gold Contact in DIMM Slots

  **Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows^® 32-bit OS. For Windows^® 64-bit OS with 64-bit CPU, there is no such limitation.
