Model

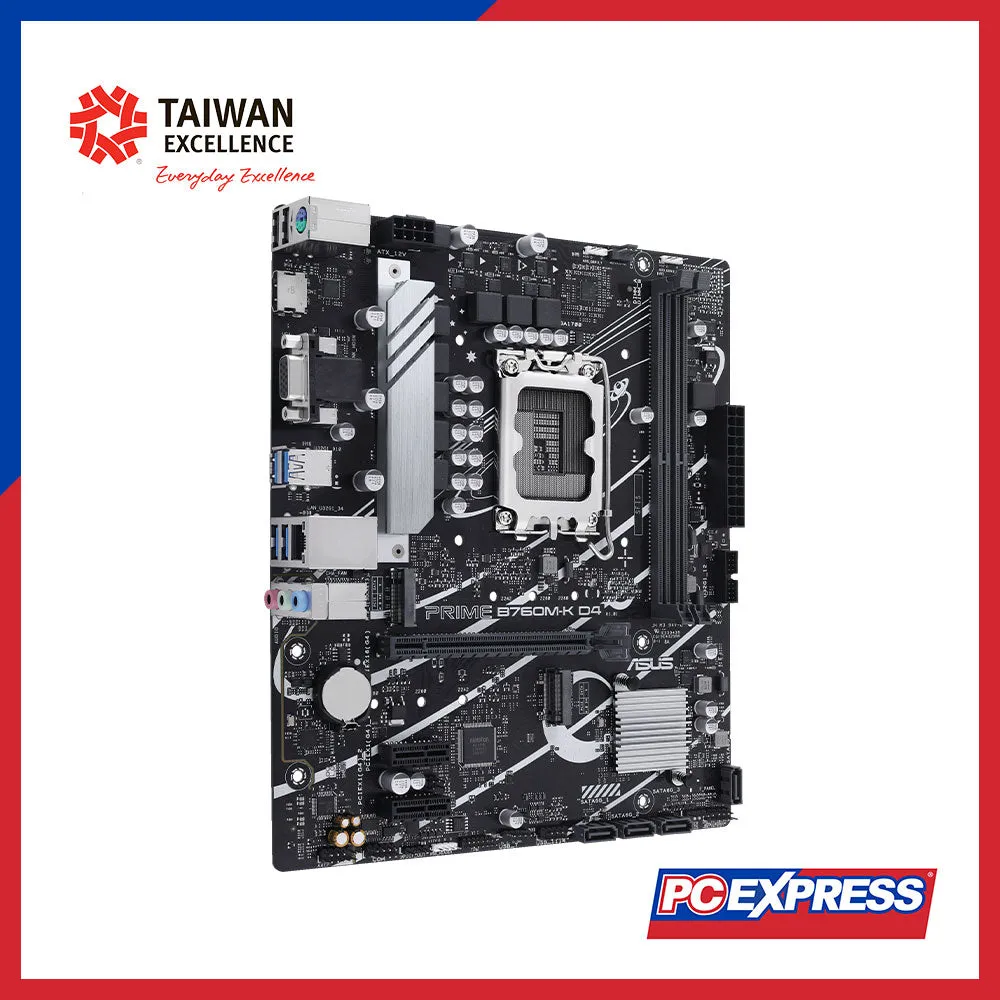

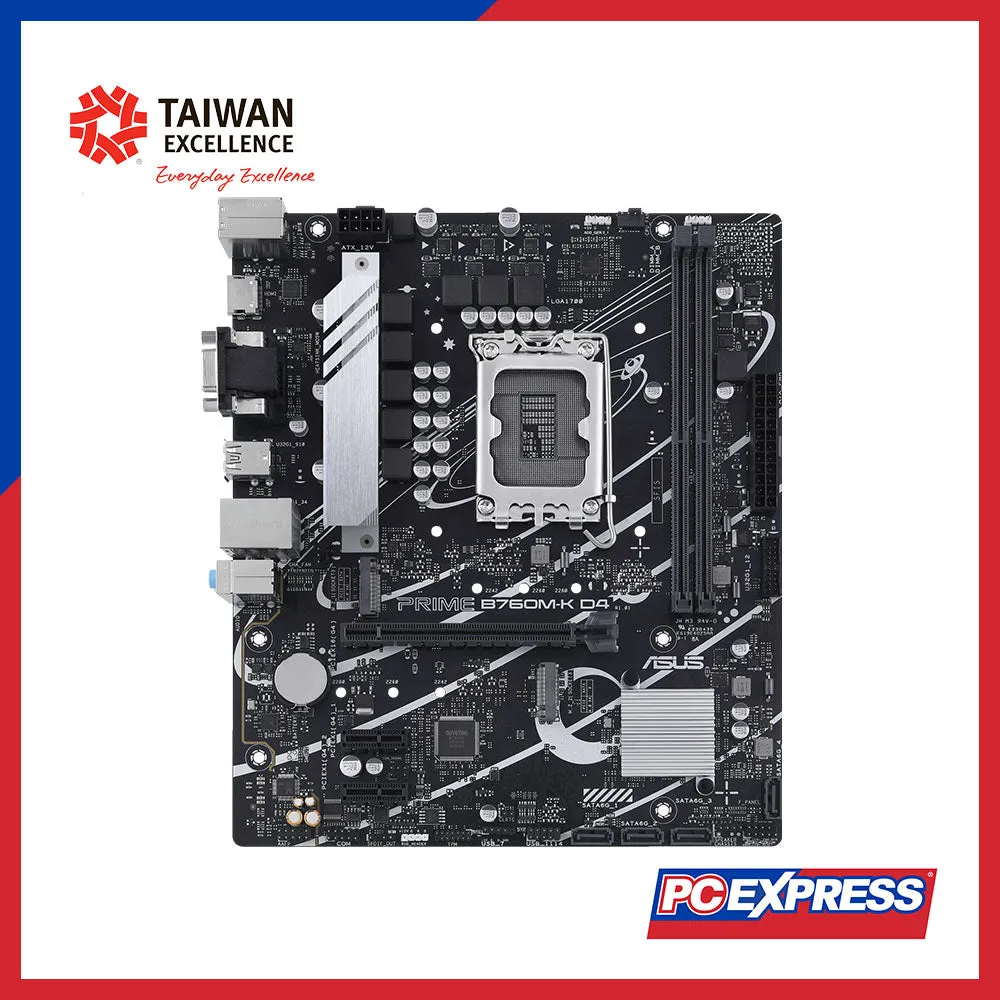

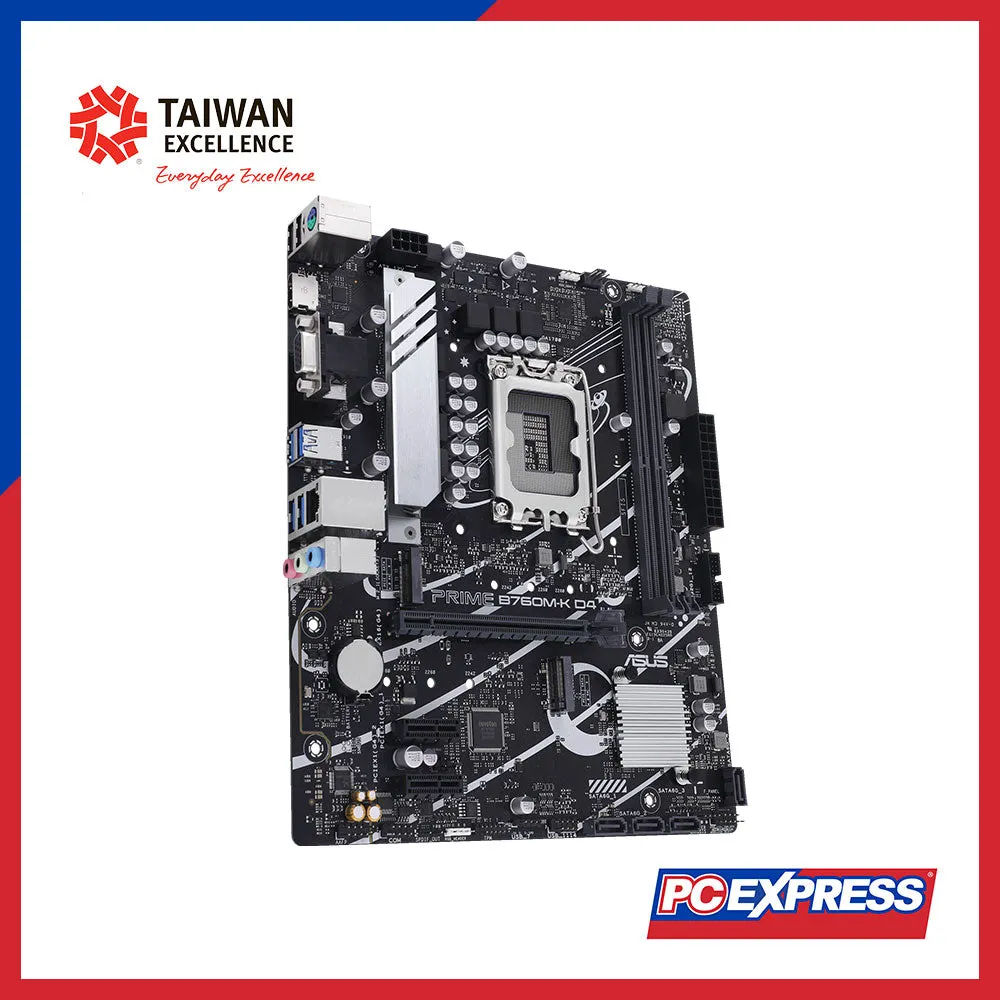

PRIME B760M-K D4

CPU

Intel® Socket LGA1700 for 13th Gen Intel® Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold, and Celeron® Processors

Chipset

Intel® B760 Chipset

Memory

2 x DIMM, Max. 64GB, DDR4 5333(OC)/5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory

Graphics

1 x VGA port, 1 x HDMI® port**

Expansion Slots

Intel® 13th & 12th Gen Processors: 1 x PCIe 4.0 x16 slot; Intel® B760 Chipset: 2 x PCIe 4.0 x1 slots

Storage

Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports

Ethernet

1 x Realtek 2.5Gb Ethernet

USB

Rear: 4 x USB 3.2 Gen 1, 2 x USB 2.0; Front: 1 x USB 3.2 Gen 1 header, 2 x USB 2.0 headers

Audio

Realtek 7.1 Surround Sound High Definition Audio CODEC

Back Panel I/O Ports

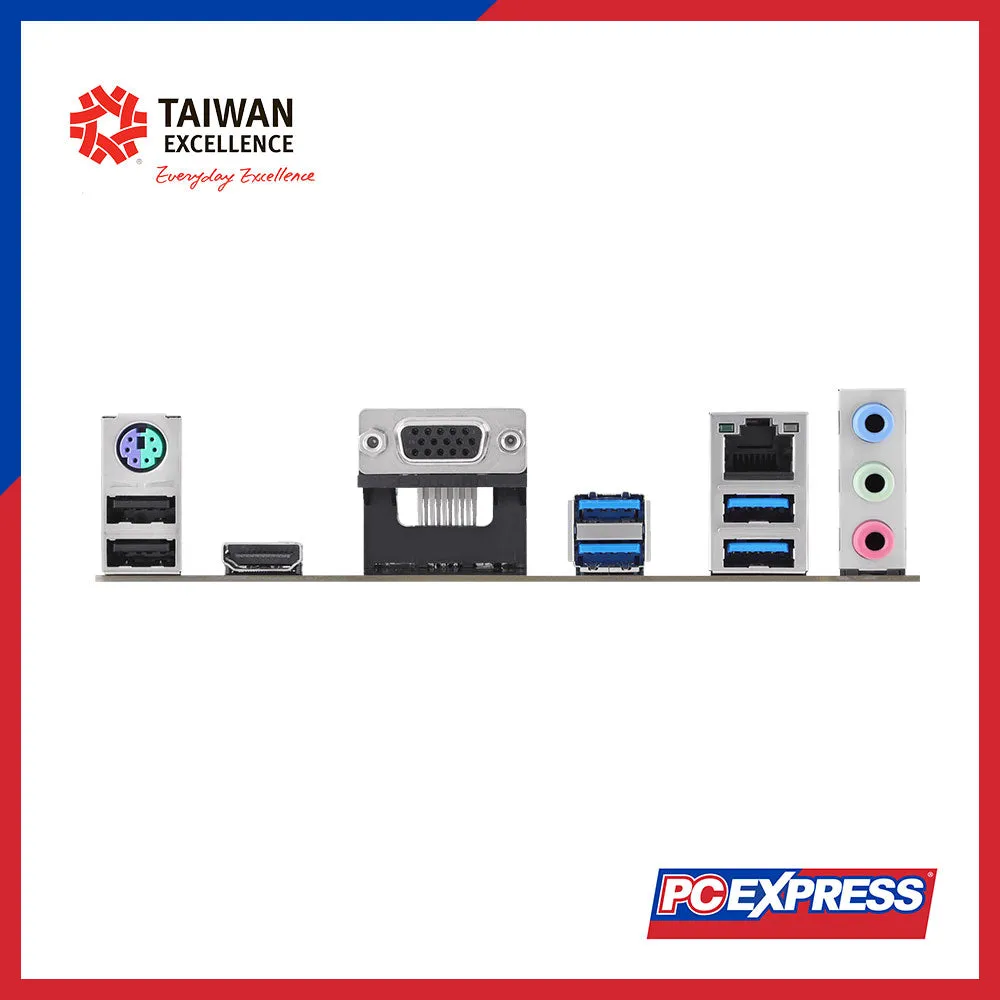

4 x USB 3.2 Gen 1, 2 x USB 2.0, VGA port, HDMI® port, Realtek 2.5Gb Ethernet port, 3 x Audio jacks, PS/2 port

Internal I/O Connectors

Fan headers, Power connectors, Storage connectors, USB connectors, Miscellaneous headers

Special Features

ASUS 5X PROTECTION III, ASUS Q-Design, ASUS EZ DIY, ASUS Thermal Solution, Aura Sync

Software Features

ASUS Exclusive Software (Armoury Crate, AI Suite 3, ASUS CPU-Z, Norton 360 Deluxe, WinRAR)

UEFI BIOS

128 Mb Flash ROM, UEFI AMI BIOS

Form Factor

mATX, 9.6 inch x 8.3 inch (24.4cm x 21.1cm)

Accessories

2 x SATA 6Gb/s cables, I/O Shield, 2 x M.2 anchors, User guide

Operating System

Windows® 11, Windows® 10 64-bit
