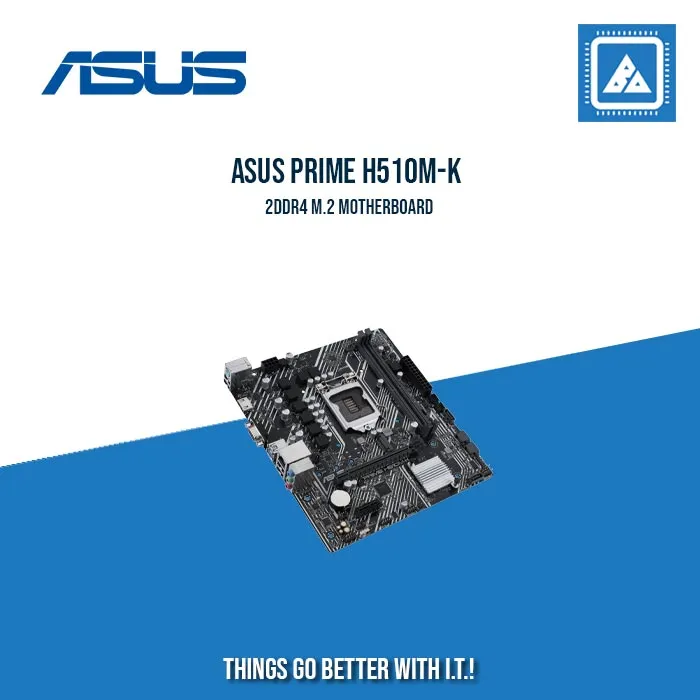

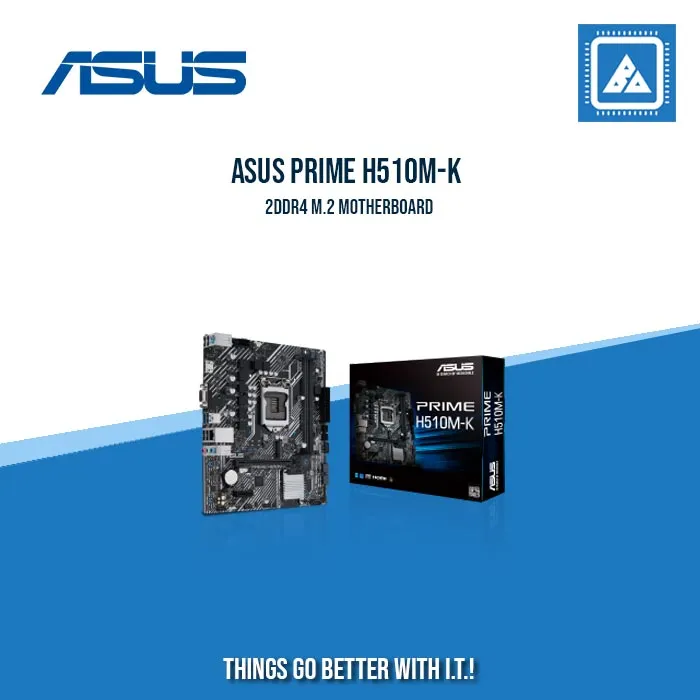

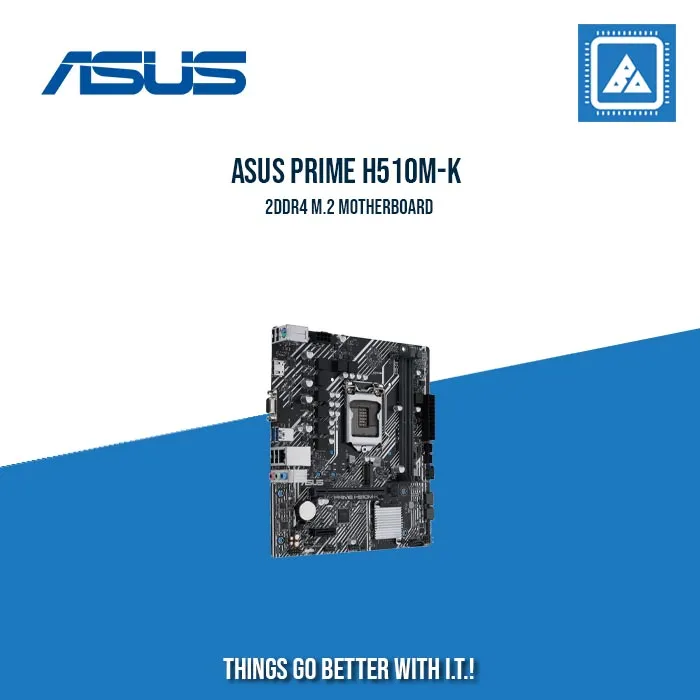

ASUS PRIME H510M-K motherboard is a reliable and budget-friendly option for your PC build. Designed to support 10th and 11th Generation Intel® Core™ processors, it provides a range of performance options for various computing needs. With two DDR4 DIMM slots and M.2 storage support, it offers efficient multitasking and fast data access, making it suitable for both work and entertainment.
This micro-ATX motherboard features a compact form factor, making it an ideal choice for small form factor PC builds. Its durable construction ensures long-term stability and reliability. Whether you're assembling a home office computer or a compact home theater PC, the ASUS PRIME H510M-K motherboard offers a cost-effective and feature-rich solution to meet your computing requirements.
| Component | Details |
|---|---|
| Model | PRIME H510M-K |
| CPU | Intel® Socket LGA1200 for 11th Gen Intel® Core™ Processors & 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors Supports Intel® 14 nm CPU Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0 Refer to for CPU support list. Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types. |
| Chipset | H510 |
| Memory | DDR4 3200(OC)/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) 10th Gen Intel® Core™ i7/i9 processors support 2933/2800/2666/2400/2133 natively, others will run at the maximum transfer rate of DDR4 2666MHz. 11th Gen Intel® processors support 2933/2800/2666/2400/2133 natively. Refer to for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types. |
| Graphics | 1 x HDMI 2.0 Graphics specifications may vary between CPU types. Only Intel® 11th Gen processors support HDMI™ 2.0 with max. resolution of 4K@60Hz, others will only support HDMI™ 1.4 with max. resolution of 4K@30Hz. Please refer to for any updates. |
| Expansion Slots | Intel® 11th & 10th Gen Processors 1 x PCIe 4.0/3.0 x16 slot Intel® 11th Gen processors support PCIe 4.0 x16 Intel® 10th Gen processors support PCIe 3.0 x16 Intel® H510 Chipset 1 x PCIe 3.0 x1 slot |
| Storage | Supports 1 x M.2 slot and 4 x SATA 6Gb/s ports Intel® H510 Chipset M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes) 4 x SATA 6Gb/s ports The M.2 slot shares bandwidth with the SATA6G_2 port. When a device in SATA mode is installed on the M.2 slot, the SATA6G_2 port cannot be used. |
| Ethernet | 1 x Intel® 1Gb Ethernet ASUS LANGuard |
| USB | Rear USB: Total 6 ports 2 x USB 3.2 Gen 1 ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Internal USB: 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 1 x USB 2.0 header supports additional 2 USB 2.0 ports |
| Audio | Realtek ALC897/887 7.1 Surround Sound High Definition Audio CODEC* Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking Supports up to 24-Bit/192 kHz playback" Audio Features: - Audio Shielding - Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. |
| Back Panel I/O Ports | 2 x USB 3.2 Gen 1 ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 1 x D-Sub port 1 x HDMI™ port 1 x Intel® I219-V 1Gb Ethernet port 3 x Audio jacks 1 x PS/2 Keyboard/Mouse combo port |
| Internal I/O Connectors | Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin Chassis Fan header Power related 1 x 24-pin Main Power connector 1 x 8-pin 12V Power connector Storage related 1 x M.2 slot (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 1 x USB 2 |
