CPU

Intel® Socket LGA1700 for 13th Gen Intel® Core™, 12th Gen Intel® Core™, Pentium® Gold, and Celeron® Processors

Chipset

Intel® Z790 Chipset

Memory

4 x DIMM, Max. 192GB, DDR5 7200 (OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/

6000(OC)/5800(OC)/5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory

Graphics

1 x DisplayPort, 1 x HDMI® port

Expansion Slots

1 x PCIe 5.0 x16 slot (Intel® 13th & 12th Gen Processors), 3 x PCIe 4.0 x16 slots (Intel® Z790 Chipset), 1 x PCIe 3.0 x1 slot (Intel® Z790 Chipset)

Storage

Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports

Ethernet

1 x Realtek 2.5Gb Ethernet

Wireless & Bluetooth

Wi-Fi 6, Bluetooth® v5.2

USB

Rear USB (Total 8 ports): 1 x USB 3.2 Gen 2x2 port (Type-C®), 1 x USB 3.2 Gen 2 port (Type-A), 2 x USB 3.2 Gen 1 ports (Type-A), 4 x USB 2.0 ports (Type-A)

Audio

Realtek 7.1 Surround Sound High Definition Audio CODEC

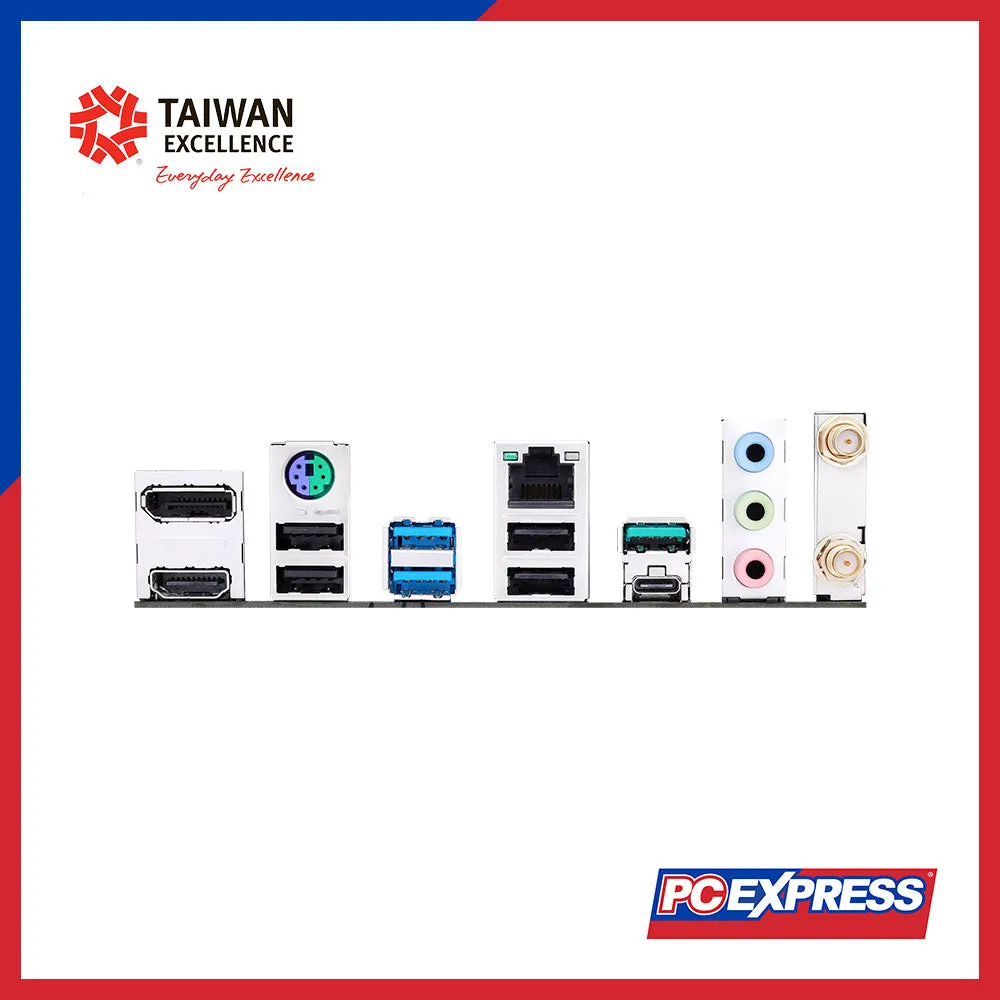

Back Panel I/O Ports

Various USB ports, DisplayPort, HDMI® port, Wi-Fi Module, Ethernet port, Audio jacks, PS/2 Keyboard/Mouse combo port

Internal I/O Connectors

Various headers for fans, power, storage, USB, etc.

Special Features

ASUS 5X PROTECTION III, ASUS Q-Design, ASUS Thermal Solution, ASUS EZ DIY, Aura Sync

Software Features

ASUS Exclusive Software: Armoury Crate, AI Suite 3, ASUS CPU-Z, MyASUS, Norton 360 Deluxe (60 Days Free Trial), WinRAR, UEFI BIOS, ASUS EZ DIY

BIOS

192 (128 64) Mb Flash ROM, UEFI AMI BIOS

Manageability

WOL by PME, PXE

Accessories

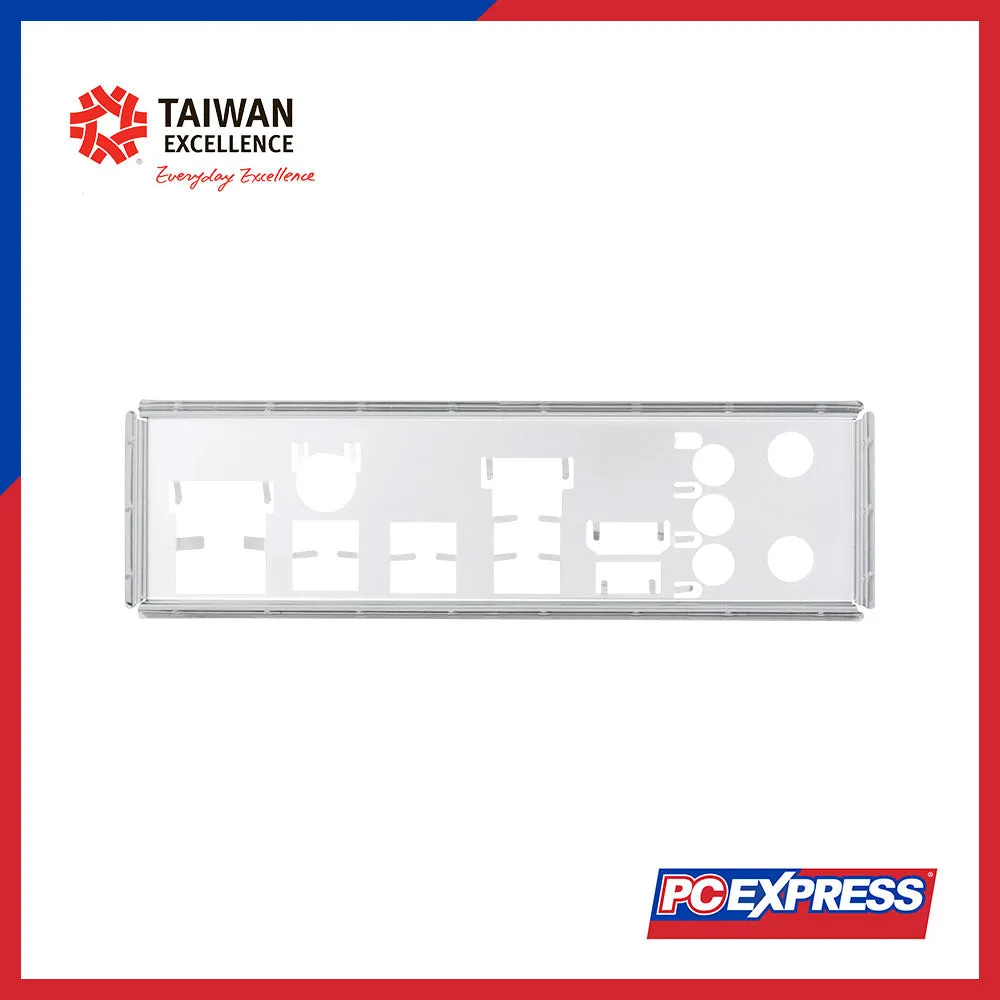

Includes cables, antennas, I/O Shield, M.2 Rubber Package, Screw packages, Documentation

Operating System

Windows® 11, Windows® 10 64-bit

Form Factor

ATX Form Factor, 12 inch x 9.2 inch (30.5 cm x 23.4 cm)
