Product Details
＋
Specifications

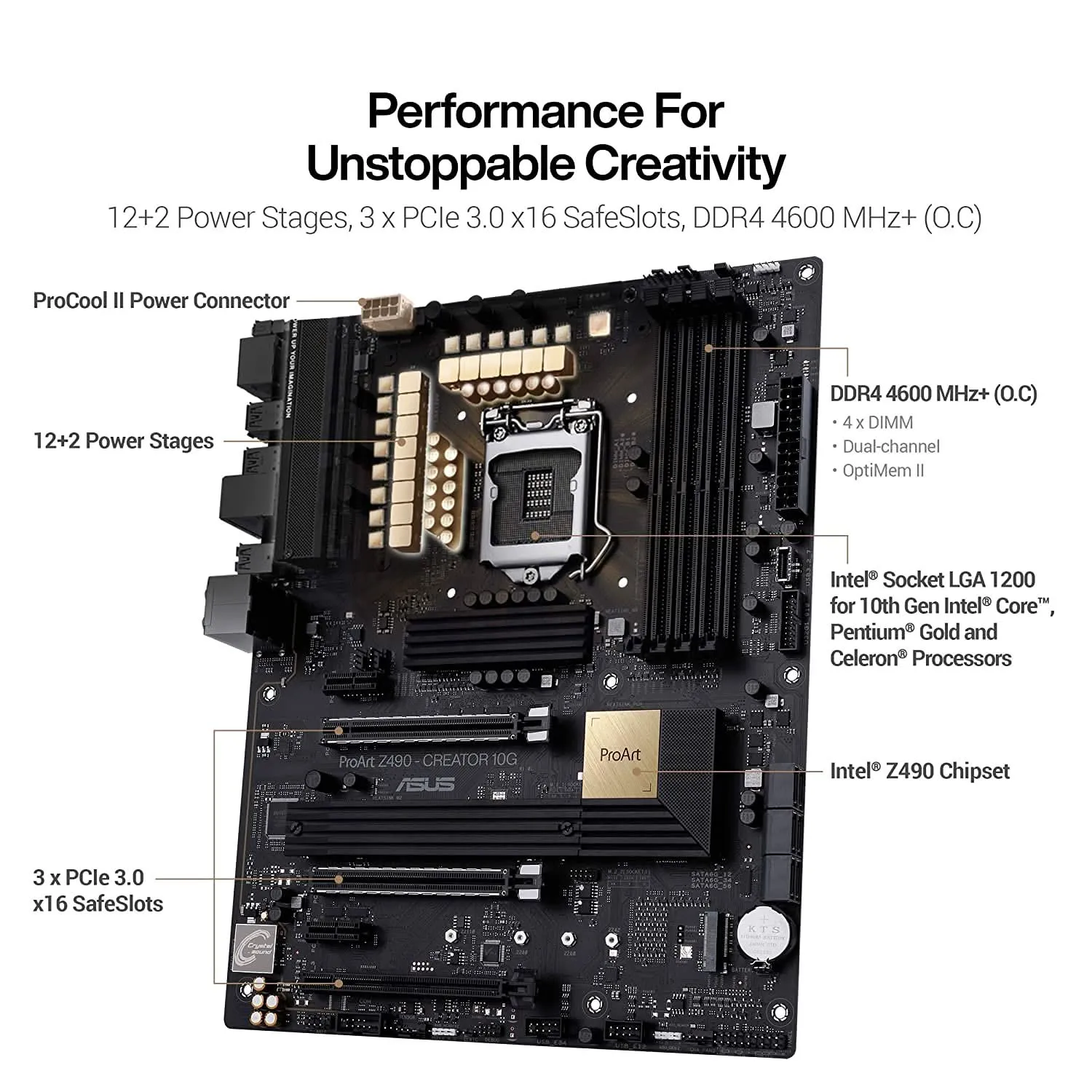

| CPU | IntelÆ Socket 1200 for 10th Gen IntelÆ Coreô, PentiumÆ Gold and CeleronÆ Processors * Supports IntelÆ 14 nm CPU Supports IntelÆ Turbo Boost Technology 2.0 and IntelÆ Turbo Boost Max Technology 3.0** **IntelÆ Turbo Boost Max Technology 3.0 support depends on the CPU types. |
| Chipset | IntelÆ Z490 |
| Memory | 4 x DIMM, Max. 128GB, DDR4 4600(O.C)/4500(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/ 3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/ 3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory * Dual Channel Memory Architecture Supports IntelÆ Extreme Memory Profile (XMP) OptiMem II * 10th Gen IntelÆ Coreôi9/i7 CPUs support 2933/2800/2666/2400/2133 natively, Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). |
| Thunderbolt | 2 x IntelÆ Thunderboltô 3 ports(TypeCô) support DisplayPort and Thunderboltô video outputs Supports DisplayPort 1.4/ with max. resolution 7680/ x 3840/@ 60 Hz* * VGA resolution support depends on VGA cards¥ resolution. Data transfer rate up to 40 Gbps Daisy-chain up to 12 Thunderbolt devices Up to 5V/3A, 15W charging support |
| Graphic | Integrated Graphics Processor 1 x DisplayPort 1.4 ** 1 x HDMI 1.4b *Graphics specifications may vary between CPU types. **Support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Please refer to for any update. |
| Multi-GPU Support | Supports AMD 3-Way CrossFireXô Technology |
| Expansion Slots |
IntelÆ 10th Gen Processors 2 x PCIe 3.0 x16 (x16 or dual x8) *1 IntelÆ Z490 Chipset 1 x PCIe 3.0 x16 (x4 mode) *2 2 x PCIe 3.0 x1 |
| Storage |
Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports IntelÆ Z490 Chipset : 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)*3 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)*4 6 x SATA 6Gb/s port(s) Support Raid 0, 1, 5, 10 IntelÆ Rapid Storage Technology supports IntelÆ Optaneô Memory Ready |
| LAN | IntelÆ I225-V 2.5Gb Ethernet |
| Audio | RealtekÆ ALC S1220A 8-Channel High Definition Audio CODEC - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, Front Panel MIC Jack-retasking, up to 24-Bit/192kHz playback - High quality 120 dB SNR stereo playback output and SNR recording input Audio Feature : - Optical S/PDIF out port(s) at back panel - Audio Shielding - Dedicated audio PCB layers - Premium Japanese audio capacitors - Audio Cover - Unique de-pop circuit * Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio. |
| USB Ports |
IntelÆ Thunderboltô 3 Controller : 2 x USB 3.2 Gen 2 port(s) (USB Type-CÆ) Rear USB Port ( Total 6 ) 4 x USB 3.2 Gen 2 port(s)(4 x Type-A) 2 x USB 3.2 Gen 1 port(s)(2 x Type-A) Front USB Port ( Total 7 ) 1 x USB 3.1 Gen 1 port(s)(1 x USB Type-CÆ) 2 x USB 3.2 Gen 1 port(s)(2 x Type-A) 4 x USB 2.0 port(s) |
| Operating System Support | WindowsÆ 10 64-bit |
| Software Features | ASUS Exclusive Software ProArt Creator Hub CreationFirst Armoury Crate - Aura Sync AI Suite 3 - Performance And Power Saving Utility EPU Digi VRM Fan Xpert 4 - EZ update AI Charger WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode |
| ASUS Special Features | ASUS 5X PROTECTION III - ASUS DIGI VRM (- Digital power design with Dr. MOS) - ASUS Enhanced DRAM Overcurrent Protection - ASUS ESD Guards - ASUS LANGuard - ASUS Overvoltage Protection - ASUS SafeSlot Core - ASUS Stainless-Steel Back I/O ASUS Q-Design - ASUS Q-DIMM - ASUS Q-LED - ASUS Q-Shield - ASUS Q-Slot ASUS Thermal Solution - Aluminum heatsink design ASUS EZ DIY - Procool - SafeSlot AURA Sync - Standard RGB headers - Addressable Gen 2 RGB header(s) - Addressable Gen 2 RGB header |

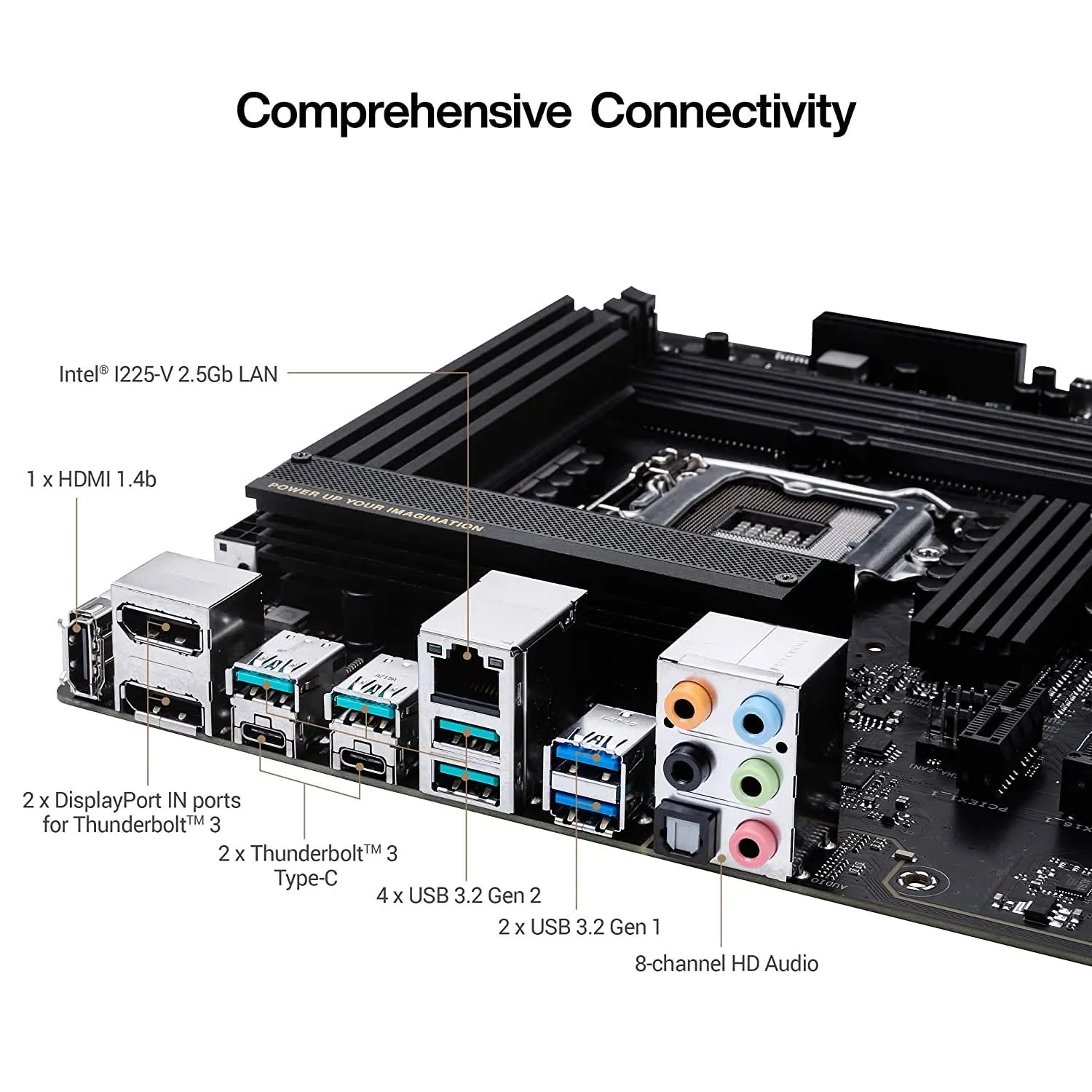

| Back I/O Ports | 2 x Thunderbolt 3 ports TypeCô 2 x DisplayPort IN ports for Thunderboltô 3 1 x HDMI 1 x LAN (2.5G) port(s) 4 x USB 3.2 Gen 2 Type-A 2 x USB 3.2 Gen 1 Type-A 1 x Optical S/PDIF out 5 x Audio jack(s) |
| Internal I/O Ports | 1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 3 x Chassis Fan connector(s) 1 x AIO_PUMP connector 2 x Aura RGB Strip Headers 1 x Addressable Gen 2 header(s) 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 1 USB 3.2 Gen 1 port(s) (20-pin, Type-C) 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode) 6 x SATA 6Gb/s connector(s) 1 x Thunderbolt header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin EATX 12V Power connectors 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) (Chassis intrusion header is inbuilt) x With flexkey function 1 x Thermal sensor connector(s) 1 x CPU OV 1 x Clear CMOS jumper(s) 1 x COM port header |

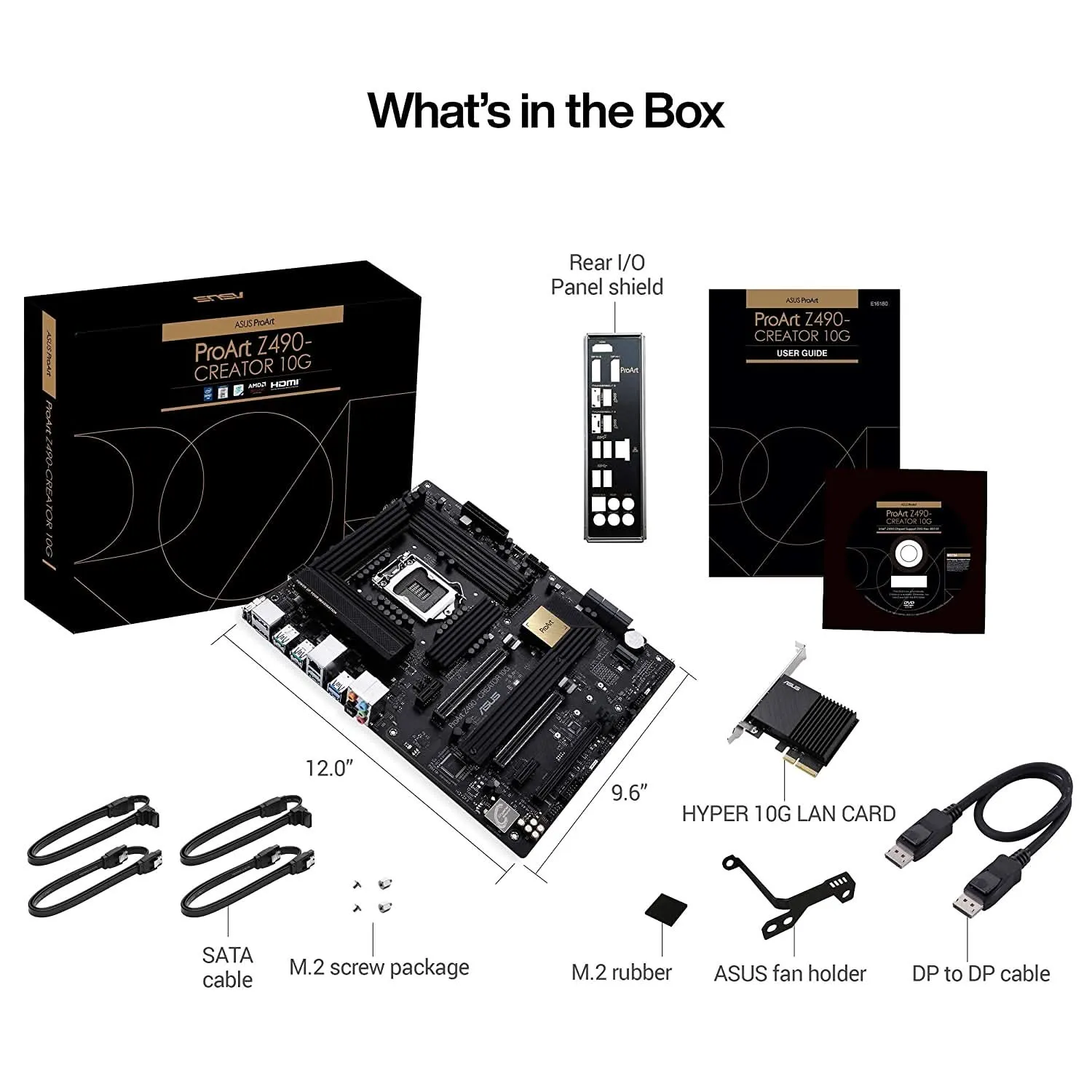

| Accessories | I/O Shield 4 x SATA 6Gb/s cable(s) 1 x M.2 Screw Package 1 x Supporting DVD 1 x DisplayPort cable User manual 1 x CPU Fan Holder 1 x 2-in-1 Rubber pad 1 x HYPER 10G LAN CARD |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |
| Operating System | WindowsÆ 10 64-bit |
| Form Factor | ATX Form Factor 12 inch x 9.2 inch ( 30.5 cm x 23.4 cm ) |
