Model

TUF GAMING B650M-PLUS WIFI

CPU Socket

AMD Socket AM5 for AMD Ryzen™ 7000 & 8000 Series Desktop Processors

Chipset

AMD B650

Memory

4 x DIMM, Max. 192GB, DDR5 7600 (OC) to 5200/5000/4800 ECC & Non-ECC, Un-buffered Memory, Dual Channel Architecture, Supports AMD EXTended Profiles for Overclocking (EXPO™), OptiMem II

Graphics

1 x DisplayPort (8K@60Hz), 1 x HDMI® port (4K@60Hz)

Expansion Slots

AMD Ryzen™ 7000 Series: 1 x PCIe 4.0 x16, AMD Ryzen™ 8000 Series: 1 x PCIe 4.0 x16 (x8/x4 mode), AMD B650 Chipset: 1 x PCIe 4.0 x16 (x4 mode), 1 x PCIe 4.0 x1

Storage

2 x M.2 slots (PCIe 5.0 x4 and PCIe 4.0 x4 mode), 4 x SATA 6Gb/s ports, AMD RAIDXpert2 Technology supports NVMe RAID 0/1/10 and SATA RAID 0/1/10

Ethernet

1 x Realtek 2.5Gb Ethernet, TUF LANGuard

Wireless & Bluetooth

Wi-Fi 6 (802.11 a/b/g/n/ac/ax), Bluetooth v5.2

USB

Rear USB: 1 x USB 3.2 Gen 2x2, 2 x USB 3.2 Gen 2, 1 x USB 3.2 Gen 1, 4 x USB 2.0, Front USB: 1 x USB 3.2 Gen 1 connector, 2 x USB 2.0 headers

Audio

Realtek 7.1 Surround Sound High Definition Audio CODEC, Supports up to 24-Bit/192 kHz playback, Audio Shielding, Premium audio capacitors

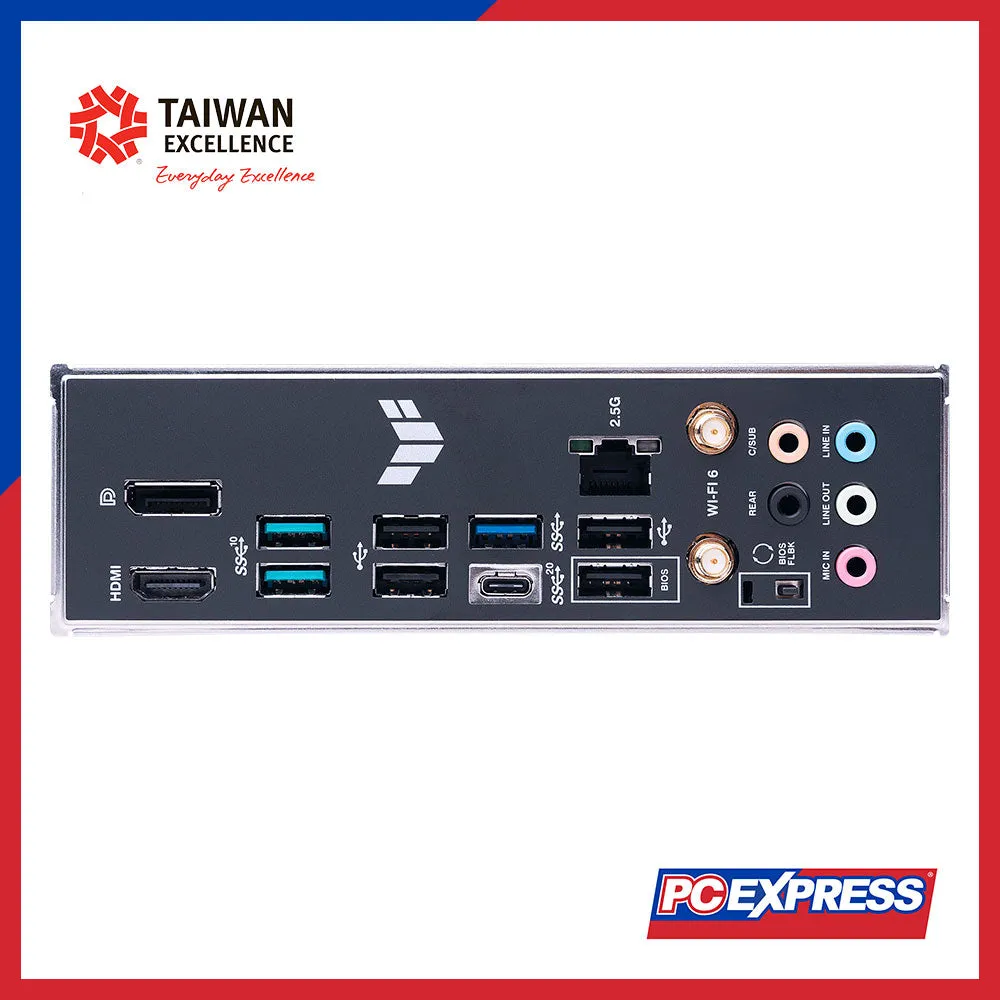

Back Panel I/O Ports

1 x USB 3.2 Gen 2x2, 2 x USB 3.2 Gen 2, 1 x USB 3.2 Gen 1, 4 x USB 2.0, 1 x DisplayPort, 1 x HDMI, 1 x Wi-Fi Module, 1 x Realtek 2.5Gb Ethernet, 5 x Audio jacks, 1 x BIOS FlashBack™ button

Internal I/O Connectors

Various headers for fans, power, storage, USB, and more

Miscellaneous

3 x Addressable Gen 2 headers, 1 x Aura RGB header, 1 x COM Port header, 1 x Clear CMOS header, 1 x Front Panel Audio header, 1 x Thunderbolt™ (USB4®) header

Special Features

ASUS TUF PROTECTION, ASUS Q-Design, ASUS Thermal Solution, ASUS EZ DIY, Aura Sync

Software Features

ASUS Exclusive Software: Armoury Crate, AI Suite 3, TUF GAMING CPU-Z, DTS Audio Processing, MyAsus, Norton Anti-virus software (Free Trial version), WinRAR

BIOS

256 Mb Flash ROM, UEFI AMI BIOS

Operating System

Windows®11, Windows®10 64-bit

Form Factor

micro-ATX Form Factor, 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)
