CPU Socket

LGA1200 package

Supported Processors

11th Gen Intel Core i9/i7/i5, 10th Gen Intel Core i9/i7/i5/i3/Pentium/Celeron (limited)

L3 Cache

Varies with CPU

Chipset

Intel B560 Express Chipset

Memory Support

Up to DDR4 4600(O.C.) MHz for 11th Gen i9/i7/i5, 2933 MHz for 10th Gen i9/i7, 2666 MHz for 10th Gen i5/i3/Pentium/Celeron

Maximum Memory

Up to 128 GB, dual-channel architecture

Onboard Graphics

Intel HD Graphics, DisplayPort, HDMI

Audio

Realtek Audio CODEC, High Definition Audio, 2/4/5.1/7.1-channel

LAN

Realtek GbE LAN chip (1000/100 Mbit)

Wireless Communication

AzureWave Wi-Fi AW-CB304NF (802.11a/b/g/n/ac, Bluetooth 4.2)

Expansion Slots

1 x PCIe x16 (x16), 2 x PCIe x1

Storage Interface

1 x M.2 (PCIe 4.0), 1 x M.2 (SATA/PCIe 3.0), 6 x SATA 6Gb/s

USB Ports

1 x USB Type-C (Gen 1), 5 x USB 3.2 Gen 1, 6 x USB 2.0/1.1

Internal Connectors

1 x 24-pin ATX, 1 x 8-pin ATX 12V, 1 x CPU fan, 3 x system fan, 6 x SATA, 2 x M.2, etc.

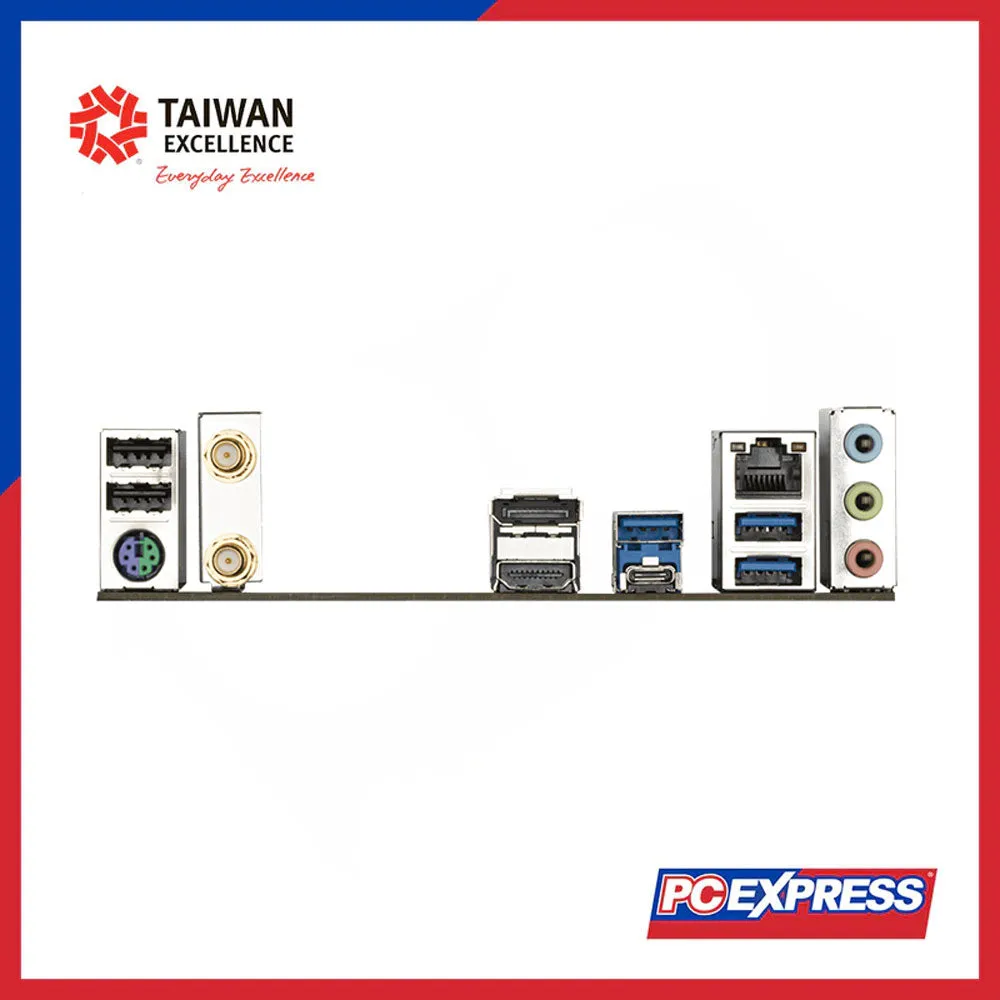

Back Panel Connectors

2 x USB 2.0/1.1, 1 x PS/2, 2 x SMA antenna, 1 x DisplayPort, 1 x HDMI, 3 x USB 3.2 Gen 1, 1 x USB Type-C, 1 x RJ-45, 3 x audio jacks

I/O Controller

iTE I/O Controller Chip

H/W Monitoring

Voltage, temperature, fan speed detection and control

BIOS

256 Mbit flash, AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features

APP Center, @BIOS, EasyTune, Fast Boot, Game Boost, ON/OFF Charge, RGB Fusion, Smart Backup, System Information Viewer, Q-Flash Plus, Q-Flash, Xpress Install

Bundled Software

Norton Internet Security (OEM version), Realtek 8118 Gaming LAN Bandwidth Control Utility

Operating System

Windows 10 64-bit

Form Factor

Micro ATX, 24.4cm x 24.4cm

Note

Supported by 11th Gen processors only

Remark

Check chipset vendors' or 3rd party website for Linux drivers; Limited Win9X/ME/2000/XP driver support
