Product Details
＋
- AMD Socket AM5: Supports AMD Ryzen 7000 Series Processors.
- Unparalleled Performance: Direct 8 2 1 Phases Digital VRM Solution.
- Dual Channel DDR5: 2 x SMD DIMMs with AMD EXPO and Intel XMP Memory Module Support.
- Next Generation Storage: 1 x PCIe 5.0 x4 and 2 x PCIe 4.0 x4 M.2 Connectors.
- Fully Covered Heatpipe and M.2 Thermal Guard III with Active Cooling: To Ensure 2280 PCIe 5.0 M.2 SSD Performance.
- EZ-Latch: PCIe x16 Slot and M.2 Connectors with Quick Release and Screwless Design.
- Hi-Fi Audio with DTS:X Ultra: ALC4080 CODEC.
- Fast Networks: Intel 2.5GbE LAN and Wi-Fi 6E 802.11ax.

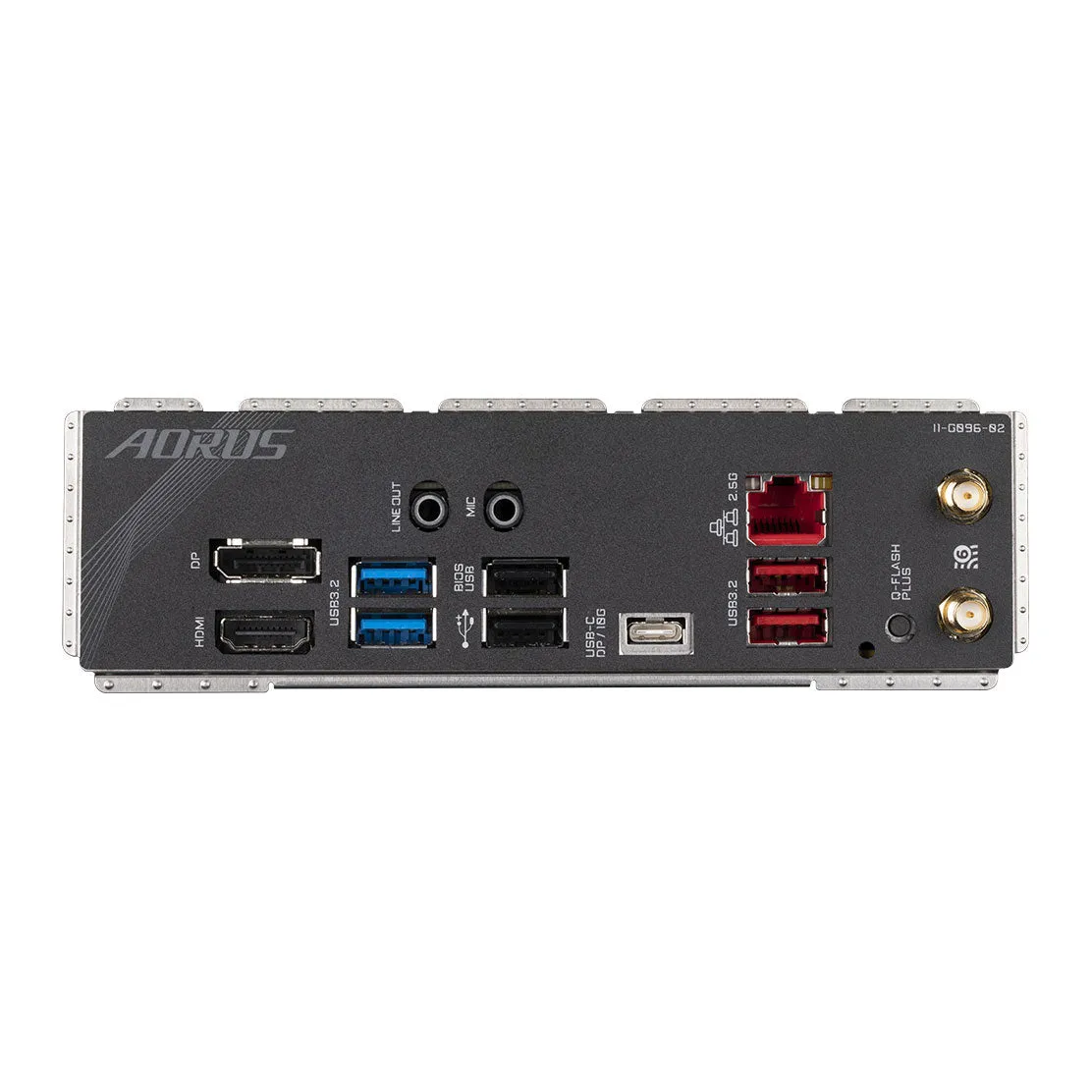

- Extended Connectivity: DP, HDMI, Rear USB-C with DP Alt Mode, Front USB-C 20Gb/s.
- Q-Flash Plus: Update BIOS Without Installing the CPU, Memory and Graphics Card.

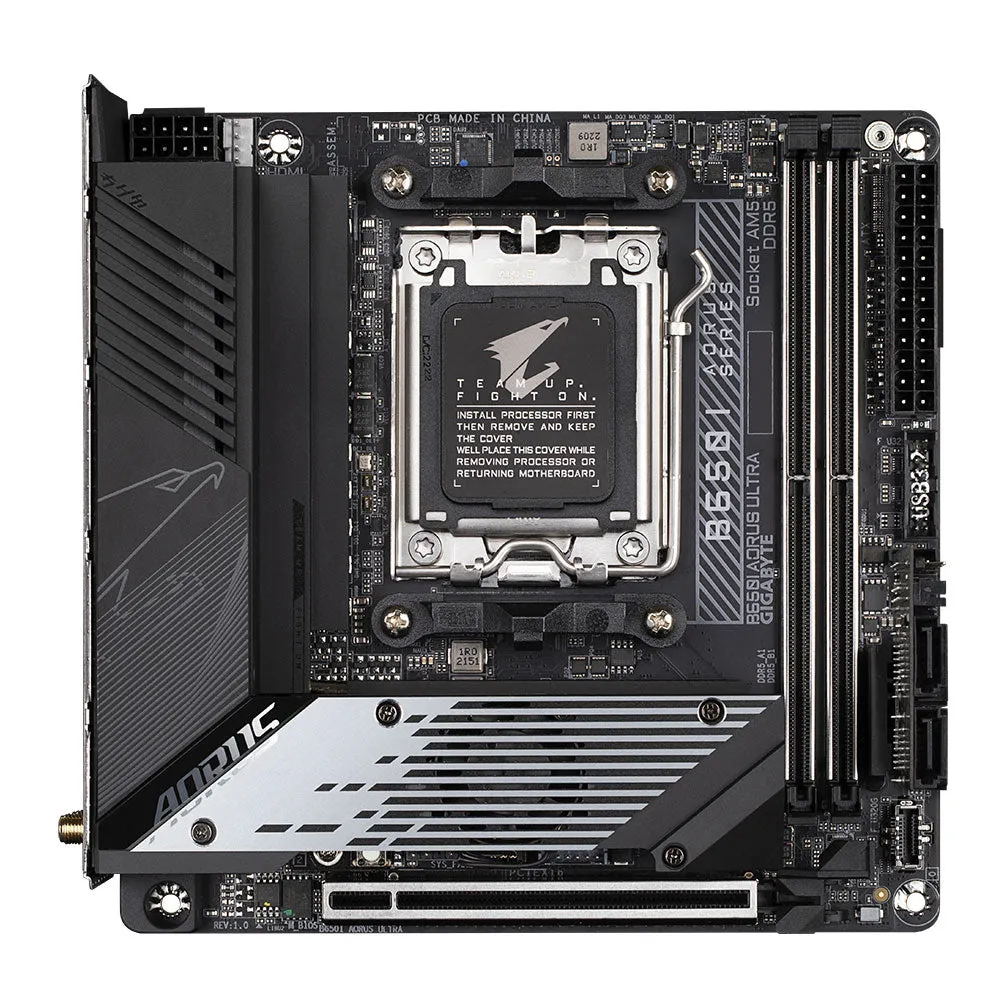

| Form Factor | Mini ITX Form Factor; 17.0cm x 17.0cm | |
| CPU Socket | Supports AMD Socket AM5 Ryzen™ 7000 Series Processors - | |
| Chipset | AMD B650 | |
| Memory | Architecture | 2 x DDR5 DIMMs (Dual Channel) non-ECC, un-buffered |
| Capacity | 96GB (48GB single DIMM capacity) | |
| Speed | Up to 6400Mhz(OC) | |
| Extras | Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules | |
| PCI Slots | 0 | |
| PCI-Express x16 | 1 x PCIe 4.0 x16 Slot (PCIXE16), supports x16 speed | |
| PCI-Express x4 | 0 | |
| PCI-Express x1 | 0 | |
| Multi-GPU | - | |
| USB | External | - 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) - 2 x USB 3.2 Gen2 Type-A Port (10 Gb/s) - 2 x USB 3.2 Gen1 Ports - 2 x USB 2.0 Ports |
| Internal | - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) - 1 x USB 3.2 Gen1 Headers (Support 2 USB 3.2 Gen1 ports) - 1 x USB 3.2 Gen2x2 Header Type-C (10 Gb/s) (Supports 1 port) | |
| Audio | - Realtek ALC4080 Codec - 2 channel | |
| Graphics | Integrated AMD graphics on processor (Actual support may vary by CPU) - 1 x DisplayPort 1.4, supporting a maximum resolution of 3840x2160@144 Hz - 1 x USB Type-C® port, supporting USB 3.2 Gen 2 and DisplayPort 1.4 video - 1 x HDMI 2.1 max. resolution up to 4K 60Hz | |
| LAN | - 1 x 2.5 Gigabit LAN 10/100/1000/2500 Mb/s (Intel) | |
| Wireless | AMD Wi-Fi 6E RZ616 (MT7922A22M) WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.2 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate | |
| Storage Interfaces | CPU | 1 x M.2 connector on the front of GC-B650I BTB PLUG (Socket 3, M key, type 2280 PCIe 5.0* x4/x2 SSD support) (M2B_CPU) * Actual support may vary by CPU. 1 x M.2 connector on the back of GC-B650I BTB PLUG (Socket 3, M key, type 2280/2260 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) |
| Chipset | 1 x M.2 connector on the back of the motherboard (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2C_SB) 44 x SATA 6Gb/s connectors on the front of GC-B650I FRONT CARD | |
| Notes | Supports RAID 0, 1, 10 for NVME SSD and SATA devices | |
| Lighting | - 1 x RGB LED Header - 1 x Addressable LED Headers | |
| Fan Headers | - 1 x CPU fan header - 1 x CPU fan/water cooling pump header - 1 x system fan header (SYS_FAN1) | |
| PSU Connectors | - 1 x 24 pin ATX Power Connector - 1 x 8 pin 12V Power Connector | |
