CPU

LGA1700 socket: Support for 14th, 13th, and 12th Gen Intel® Core™, Pentium® Gold, and Celeron® Processors

L3 Cache: Varies with CPU

Refer to "CPU Support List" for more information

Chipset

Intel® B760 Express Chipset

Memory

Supports DDR4 up to 5333 MT/s (O.C.)

4 x DDR DIMM sockets, up to 128 GB (32 GB per DIMM)

Dual channel memory architecture

Supports ECC Un-buffered DIMM (operates in non-ECC mode)

Supports non-ECC Un-buffered DIMM

Supports Extreme Memory Profile (XMP) memory modules

Onboard Graphics

Integrated Graphics Processor-Intel® HD Graphics

1 x HDMI port (4096x2160@60 Hz, HDMI 2.1, HDCP 2.3)

1 x DisplayPort (4096x2304@60 Hz, DP 1.2, HDCP 2.3)

Audio

Realtek® Audio CODEC, High Definition Audio, 2/4/5.1/7.1-channel, S/PDIF Out support

LAN

Realtek® 2.5GbE LAN chip

Wireless Communication

Module: Intel® Wi-Fi 6E AX211 (PCB rev. 1.0 / 1.1), Realtek® Wi-Fi 6E RTL8852CE (PCB rev. 1.2)

Wi-Fi: a, b, g, n, ac, ax (2.4/5/6 GHz bands)

Bluetooth: 5.3

Expansion Slots

CPU: 1 x PCIe 4.0 x16 slot (PCIEX16)

Chipset: 1 x PCIe 4.0 x16 slot (PCIEX4), AMD CrossFireX™ support

Storage Interface

CPU: 1 x M.2 connector (PCIe 4.0 x4/x2 SSD support) (M2A_CPU)

Chipset: 1 x M.2 connector (PCIe 4.0 x4/x2 SSD support) (M2P_SB), 4 x SATA 6Gb/s connectors, RAID 0/1/5/10 support

USB Ports

Chipset: 1 x USB Type-C® (USB 3.2 Gen 2x2) (back panel), 1 x USB Type-C® (USB 3.2 Gen 2) (internal), 1 x USB 3.2 Gen 2 Type-A (back panel)

1 x USB 3.2 Gen 1 (back panel), 4 x USB 2.0/1.1 (internal)

Chipset USB 3.2 Gen 1 Hub: 4 x USB 3.2 Gen 1 (2 x back panel, 2 x internal)

Chipset USB 2.0 Hub: 4 x USB 2.0/1.1 (back panel)

Internal I/O Connectors

1 x 24-pin ATX power, 1 x 8-pin ATX 12V, 1 x 4-pin ATX 12V, 1 x CPU fan header, 3 x system fan headers, 2 x M.2 connectors, 4 x SATA 6Gb/s, etc.

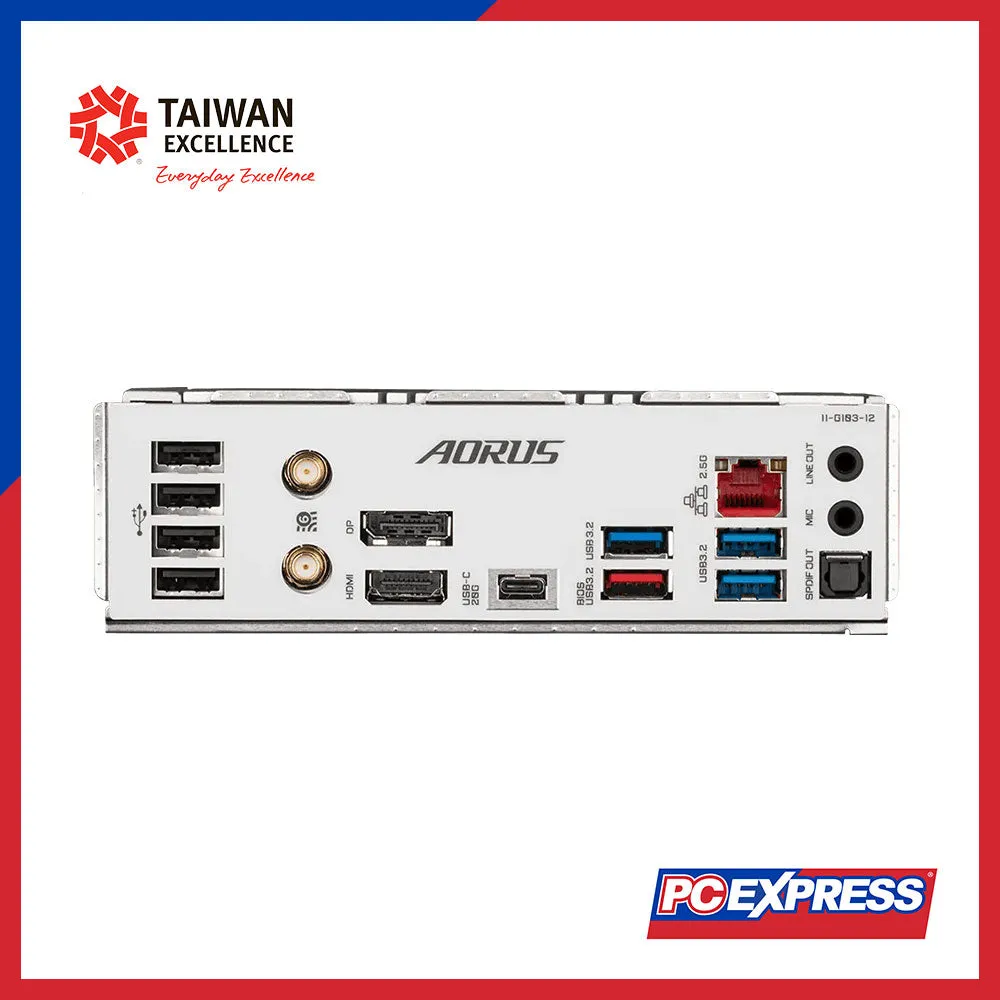

Back Panel Connectors

2 x SMA antenna connectors, 1 x USB Type-C® (USB 3.2 Gen 2x2), 1 x USB 3.2 Gen 2 Type-A, 3 x USB 3.2 Gen 1, 4 x USB 2.0/1.1, 1 x HDMI, 1 x DP, etc.

I/O Controller

iTE® I/O Controller Chip

H/W Monitoring

Voltage, temperature, fan speed, water cooling flow rate detection, fan fail warning, fan speed control

BIOS

1 x 256 Mbit flash, AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features

Support for GIGABYTE Control Center (GCC), Q-Flash, Q-Flash Plus

Bundled Software

Norton® Internet Security (OEM), LAN bandwidth management software

Operating System

Support for Windows 11 64-bit, Windows 10 64-bit

Form Factor

Micro ATX Form Factor, 24.4cm x 24.4cm
