SPECIFICATION
Essentials |
|
Product Collection | 13th Generation Intel® Core™ i7 Processors |
Code Name | Products formerly Raptor Lake |
Vertical Segment | Desktop |

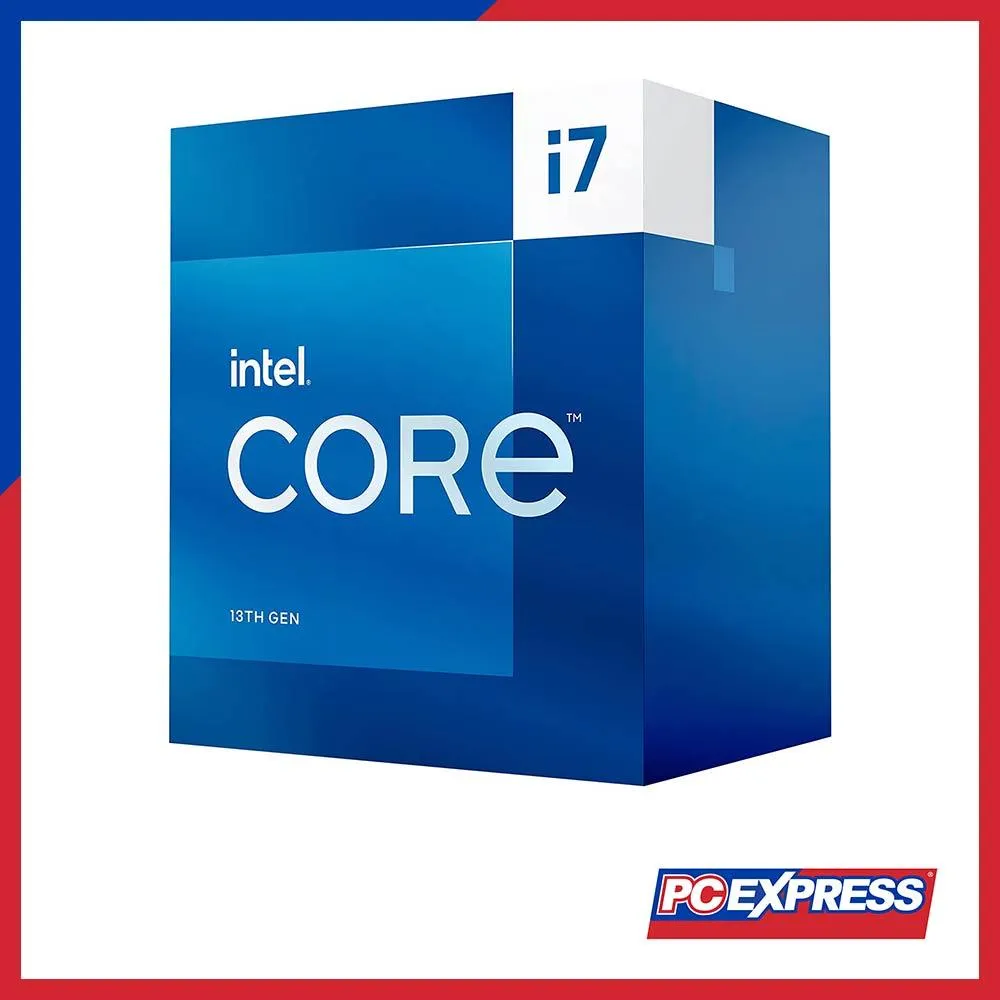

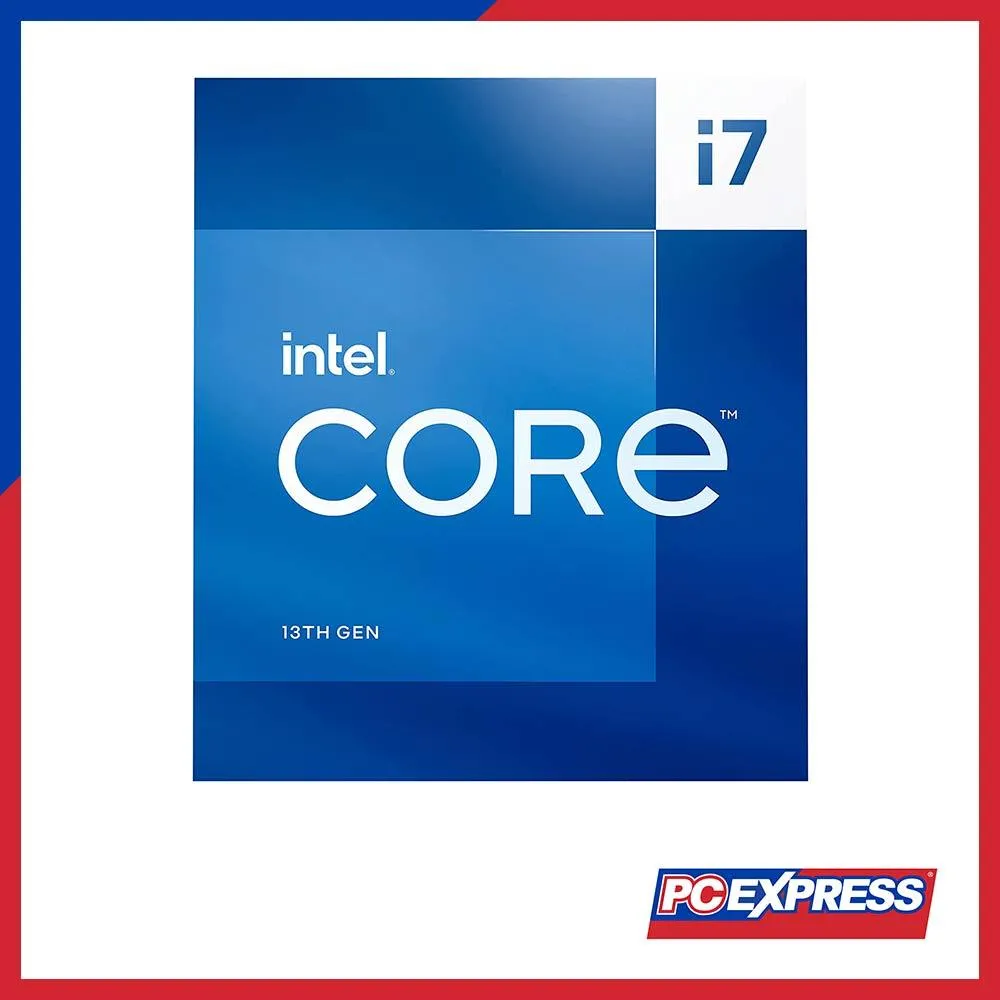

Processor Number | i7-13700 |
Lithography | Intel 7 |
Use Conditions | PC/Client/Tablet, Workstation |
CPU Specifications |
|
Total Cores | 16 |
# of Performance-cores | 8 |
# of Efficient-cores | 8 |
Total Threads | 24 |
Max Turbo Frequency | 5.20 GHz |
Intel® Turbo Boost Max Technology 3.0 Frequency | 5.20 GHz |
Performance-core Max Turbo Frequency | 5.10 GHz |
Efficient-core Max Turbo Frequency | 4.10 GHz |
Performance-core Base Frequency | 2.10 GHz |
Efficient-core Base Frequency | 1.50 GHz |
Cache | 30 MB Intel® Smart Cache |
Total L2 Cache | 24 MB |
Processor Base Power | 65 W |
Maximum Turbo Power | 219 W |
Supplemental Information |
|
Marketing Status | Launched |
Launch Date | Q1'23 |
Embedded Options Available | Yes |
Memory Specifications |
|
Max Memory Size (dependent on memory type) | 192 GB |
Memory Types | Up to DDR5 5600 MT/s |
Max # of Memory Channels | 2 |
Max Memory Bandwidth | 89.6 GB/s |
ECC Memory Supported | Yes |
GPU Specifications |
|
Processor Graphics | Intel® UHD Graphics 770 |
Graphics Base Frequency | 300 MHz |
Graphics Max Dynamic Frequency | 1.60 GHz |
Graphics Output | 32 |
Max Resolution (HDMI) | 4096 x 2160 @ 60Hz |
Max Resolution (DP)‡ | 7680 x 4320 @ 60Hz |
Max Resolution (eDP - Integrated Flat Panel)‡ | 5120 x 3200 @ 120Hz |
DirectX* Support | 12 |
OpenGL* Support | 4.5 |
OpenCL* Support | 3.0 |
Multi-Format Codec Engines | 2 |
Intel® Quick Sync Video | Yes |
Intel® Clear Video HD Technology | Yes |
# of Displays Supported | 4 |
Device ID | 0xA780 |
Expansion Options |
|
Direct Media Interface (DMI) Revision | 4.0 |
Max # of DMI Lanes | 8 |
Scalability | 1S Only |
PCI Express Revision | 5.0 and 4.0 |
PCI Express Configurations | Up to 1x16 4, 2x8 4 |
Max # of PCI Express Lanes | 20 |
Package Specifications |
|
Sockets Supported | FCLGA1700 |
Max CPU Configuration | 1 |
Thermal Solution Specification | PCG 2020C |
TJUNCTION | 100°C |
Package Size | 45.0 mm x 37.5 mm |
Advanced Technologies |
|
Intel® Gaussian & Neural Accelerator | 3.0 |
Intel® Thread Director | Yes |
Intel® Deep Learning Boost (Intel® DL Boost) | Yes |
Intel® Speed Shift Technology | Yes |
Intel® Turbo Boost Max Technology 3.0 | Yes |
Intel® Turbo Boost Technology | 2.0 |
Intel® Hyper-Threading Technology | Yes |
Intel® 64 | Yes |
Instruction Set | 64-bit |
Instruction Set Extensions | Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2 |
Idle States | Yes |
Enhanced Intel SpeedStep® Technology | Yes |
Thermal Monitoring Technologies | Yes |
Intel® Volume Management Device (VMD) | Yes |
Security & Reliability |
|
Intel vPro® Eligibility | Intel vPro® Enterprise, Intel vPro® Essentials, Intel vPro® Platform |
Intel® Threat Detection Technology (TDT) | Yes |
Intel® Active Management Technology (AMT) | Yes |
Intel® Standard Manageability (ISM) | Yes |
Intel® Remote Platform Erase (RPE) | Yes |
Intel® One-Click Recovery | Yes |
Intel® Hardware Shield Eligibility | Yes |
Intel® Control-Flow Enforcement Technology | Yes |
Intel® Total Memory Encryption - Multi Key | Yes |
Intel® AES New Instructions | Yes |
Secure Key | Yes |
Intel® OS Guard | Yes |
Intel® Trusted Execution Technology | Yes |
Execute Disable Bit | Yes |
Intel® Boot Guard | Yes |
Mode-based Execute Control (MBEC) | Yes |
Intel® Stable IT Platform Program (SIPP) | Yes |
Intel® Virtualization Technology with Redirect Protection (VT-rp) | Yes |
Intel® Virtualization Technology (VT-x) | Yes |
Intel® Virtualization Technology for Directed I/O (VT-d) | Yes |
Intel® VT-x with Extended Page Tables (EPT) | Yes |
