Product Details
＋
Specifications:
| Processor | Supports 10th Gen IntelÆ Coreô and PentiumÆ Gold / CeleronÆ processors for LGA1200 socket 1 2 |
| 1. Please go to intel.com for compatibility information. | |
| 2. Onboard graphics output are disabled when using the F SKU processors. | |
| Chipset | IntelÆ Z490 Chipset |
| 1DPC 1R Max speed up to 4800 MHz | |
| 1DPC 2R Max speed up to 4266 MHz | |
| 2DPC 1R Max speed up to 4400 MHz | |
| 2DPC 2R Max speed up to 4000 MHz | |
| Supports Dual-Channel mode | |
| Supports non-ECC, un-buffered memory | |
| Supports IntelÆ Extreme Memory Profile (XMP) | |
| 1. Please refer www.msi.com for more information on compatible memory | |
| Expansion Slots |
3x PCIe 3.0 x16 slots*, support x16/ x0/ x4 or x8/ x8/ x4 mode |
| 2x PCIe 3.0 x1 slots | |
| Onboard Graphics |
1x HDMI port, supports a maximum resolution of 4096x2160 @30Hz |
| 1x DisplayPort, supports a maximum resolution of 4096x2304 @60Hz | |
| Maximum shared memory is 1GB | |
| Multi-GPU |
Supports 2-Way NVIDIAÆ SLIô Technology |
| Supports 3-Way AMDÆ CrossFireô Technology | |
| Storage |
IntelÆ Z490 Chipset |
| 6x SATA 6Gb/s ports 1/ 2 | |
| 2x M.2 slots (Key M) | |
| Supports IntelÆ Sma | |
| 1. SATA2 will be unavailable when installing M.2 SATA SSD in the M2_1 slot. | |
| 2. SATA5 & SATA6 will be unavailable when installing M.2 SATA/PCIe SSD in the M2_2 slot. | |
| 3. Before using IntelÆ Optaneô memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website. | |
| RAID |
IntelÆ Z490 Chipset |
| Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices | |
| Supports RAID 0 and RAID 1 for M.2 PCIe storage devices | |
| USB |
IntelÆ Z490 Chipset |
| 5x USB 3.2 Gen 2 10Gbps ports (4 Type-A ports on the back panel, 1 Type-C internal connector) | |
| 2x USB 3.2 Gen 1 5Gbps ports are available through the internal USB 3.2 Gen 1 5Gbps connector | |
| 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors) | |
| ASMediaÆ ASM3241 Chipset | |
| 1x USB 3.2 Gen 2x2 20Gbps port on the back panel | |
| Audio |
RealtekÆ ALC1220 Codec |
| 7.1-Channel High Definition Audio | |
| Supports S/PDIF output | |
| LAN | 1x RealtekÆ RTL8125B 2.5Gbps LAN controller |
| WiFi & Bluetooth |
IntelÆ AX201 |
| The Wireless module is pre-installed in the M.2 (Key-E) slot | |
| Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz (160MHz) up to 2.4Gbps | |
| Supports 802.11ac | |
| WiFi 6 pre-certified | |
| Supports BluetoothÆ 5.1, FIPS, FISMA | |
| Internal connectors |
1x 24-pin ATX main power connector |
| 1x 8-pin ATX 12V power connector | |
| 1x 4-pin ATX 12V power connector | |
| 6x SATA 6Gb/s connectors | |
| 2x M.2 slots (M-Key) | |
| 1x USB 3.2 Gen 2 10Gbps Type-C port | |
| 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) | |
| 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) | |
| 1x 4-pin CPU fan connector | |
| 1x 4-pin water-pump fan connector | |
| 6x 4-pin system fan connectors | |
| 1x Front panel audio connector | |
| 2x System panel connectors | |
| 1x Chassis Intrusion connector | |
| 1x 4-pin RGB LED connector | |
| 2x 3-pin RAINBOW LED connectors | |
| 1x 3-pin CORSAIR LED connector | |
| 1x Serial port connector | |
| 1xTPM module connector | |
| 1x TBT connector* | |
| 1x RTD3 connector | |
| 1x Clear CMOS jumper | |

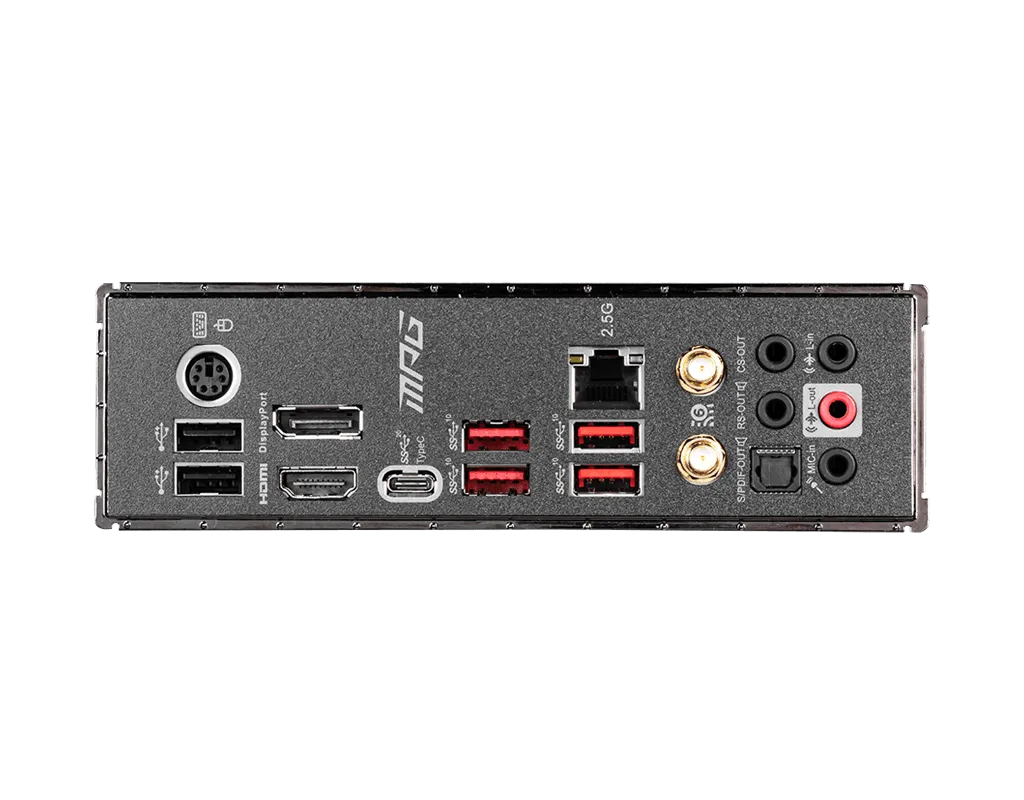

| Back panel ports |
1. PS/2 Combo Port |
| 2. DisplayPort | |
| 3. USB 3.2 Gen 2 10Gbps (Type-A) | |
| 4. LAN Port | |
| 5. HD Audio Connectors | |
| 6. USB 2.0 | |
| 7. HDMI Port | |
| 8. USB 3.2 Gen 2x2 20Gbps (Type-C) | |
| 9. USB 3.2 Gen 2 10Gbps (Type-A) | |
| 10. Wi-Fi / Bluetooth | |
| 11. Optical S/PDIF OUT | |
| Dimensions |
ATX Form Factor |
| 12 in. x 9.6 in. (30.5 cm x 24.4 cm) |
